12m Mobile Scissor Lift Self Propelled Construction Upright Work Platforms

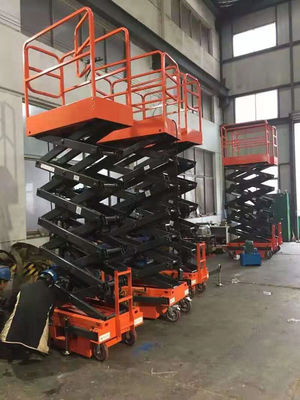

Large Image : 12m Mobile Scissor Lift Self Propelled Construction Upright Work Platforms

Product Details:

Place of Origin:	China
Brand Name:	Kinglift
Certification:	CE
Model Number:	KL1012

Payment & Shipping Terms:

Minimum Order Quantity:	1unit
Price:	Negotiable
Packaging Details:	Wrapped in bubble wrap
Delivery Time:	10-15days
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	120sets/month

Contact Now

Detailed Product Description

Product Name:	With Extendable Platform 12M Aerial Self-propelled Construction Scissor Lift	Loading Capacity:	320kg
Keyword:	Self-propelled Construction Scissor Lift	Powe Voltage:	DC24V Battery, AC415V/318V 50HZ Voltage
Lifting Height:	12m	Material:	Anti-skid Platform With Extendable
Walking Type:	Full Electric Wheel	Safety Device:	Anti-explosion Valves
Safety Device 2:	Safety Emergency Decline	Application:	Outdoor Aerial Working Equipment
Highlight:	battery operated scissor lift , heavy duty scissor lift

With Extendable Platform 12M Aerial Self-propelled Construction Scissor Lift

Description:

1. Self-propelled Construction Scissor Lift is a professional safety mobile and portable full electric scissor lift for aerial working platform.
2. Full electric wheel driving.Which single person can operate lift.
3. Working platform material is anti-skid diamond platform, scissors material are high-strength manganese steel structure and solid tyre wheel.
4. Lifting height is from 3m-16m, or as your custom.
5. Power voltage, it can be custom DC24V battery or AC415V and others.
6. Self-propelled sciss lift is widely used indoor/outdoor aerial working platform in the workshop,warehouse, enterprise, hotel.It is suitable for 1-2 persons working on the platfrom at the same time.
7. Scissor mechanical structure by electric hydraulic.
8. Safety device, there is a over height protected, explosion proof valves and manual lowering valve.
9. Specially requirement: can be added gradienter to make sure more banlance
10. Two control boxes, one box is operated on platform.

Specifications	KL0608	KL0810	KL1012	KL1412
Working Height (m)	8.00M	10.00M	12.00M	14.00M
Platform Height Max.(m)	6.00M	8.00M	10.00M	12.00M
Platform Height Stowed.(m)	1.85M	1.87M	1.91M	2.03M
Platform Extension Length(m)	0.90M	0.90M	0.90M	0.90M
Lift Capacity(Kgs)	320KG	320KG	320KG	320KG
Extendable Platform Capacity	113KG	113KG	113KG	113KG
Gradeability	25%	25%	25%	25%
Min steering radius	2.10M	2.20M	2.20M	2.20M
Drive Speed (Lowered)(km/h)	3.0km/h	3.0km/h	3.0km/h	3.0km/h
Drive Speed (Elevated)(km/h)	0.8km/h	0.8km/h	0.8km/h	0.8km/h
Overall Length(m)	2.43m	2.43m	2.43m	2.43m
Overall Width (m)	0.81m	1.15m	1.15m	1.15m
Overall Height(m)	2.18m	2.31m	2.42m	2.55m
Platform Size (m)	2.27*0.81m	2.27*1.12m	2.27*1.12m	2.27*1.12m
Ground Clearance(m)	0.10m	0.10m	0.10m	0.10m
Size of driving wheel solid tires	15*5	15*5	15*5	15*5
Weight(Kgs)	1945kg	2175kg	2468kg	2830kg
Lifting Motor	24V/3.3kw	24V/3.3kw	24V/4.5kw	24V/4.5kw
Battery	4*6V/225Ah	4*6V/225Ah	4*6V/240Ah	4*6V/240Ah
Charger	24V/25A	24V/25A	24V/25A	24V/25A

Noted: Mobile scissor lift also can be custom as your requirements!

Main Features:

1. Reinforced chassis design and scissor arm to reduce the platform swing when working.
2. Anti-explosion valve between the cylinder and oil tube to prevent the mobile scissor lift drop down at moment when it lifting working but in problems.
3. One controller on the lift table platform is easy to help worker operate the scissor lift lifting up and come down.
4. Full handrail around the platform to protect the worker safety when they work on the platform.
5. Emergency lowering valve help to solve if the machine have problems when it work on the lifting height .
6. Nomal Power is 380V 50HZ AC, but option extra DC battery can sovle the aerial work platform outside if no enough power cable or not conveniently to connect AC power.
7. Self-propelled scissor lift are all moved by full electric moved.

Configurations:

1.Electric system: Schneider contactor, CHINT electrical components
2.Hydraulic System: Hycman brand power pack ,KS brand (Made In China) or imported brand as requirements
3.Scissor Arm Support: Hi-strength Manganese steel or rectangle tube Q345 B
4.Platform Surface : Antiskid checkered plate steel sheet.
5.Fence at three sides of the top platform but reserve one door for worker in and out. This door can design inter-locking to protect user safety.
6.High-pressure oil hose: steel wire mesh between in double hydraulic rubber hose , ensure the oil hose have safety anti-pressure ability.

Optional Configuration:

1.Hydraulic Power Pack: China power pack or imported power pack as your requirements
2.Interlocking device to protect worker safety on the platform.
3.Power: AC 380V 50HZ. AC 415V 50HZ. or extra DC battery to optional as yours

Applications:

1. Site: Work Shop, logistic center, warehouse aerial working, etc.
2. Mobile scissor table application : for indoor/outdoor aerial working, like hotel aerial cleaning, maintenance power line, etc.

Mobile scissor lift Safety precautions:
