Product Details:
Payment & Shipping Terms:
|
| Product Name: | Tilt Platform Hydraulic Manual Operation Portable Small Scissor Lift Table | Loading Capacity: | 500kg |
|---|---|---|---|
| Keyword: | Small Scissor Lift Table | Operation: | Manual By Foot Pedal |
| Application: | Warehouse, Logistics Center, Factory,etc. | Platform: | Custom Tilt Platform |
| Function: | Warehouse Goods/cargos To Transfer | Safety Device: | Overload Valves |
| High Light: | manual scissor lift trolley,small lifting platform |
||

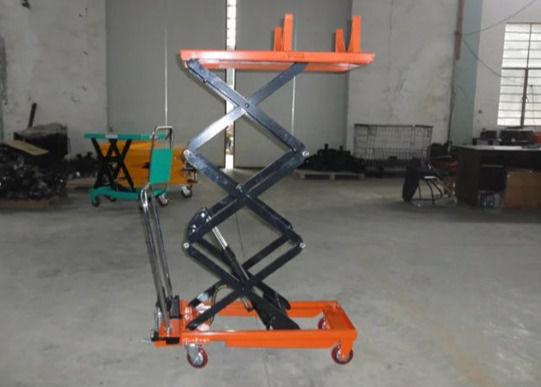

Tilt Platform Hydraulic Manual Operation Portable Small Scissor Lift Table
Description:
1. Manual lift table is a scissor structure transfer equipment for warehouse, which is by manual hydraulic lifting.
2. Various load capacity for optional, which is from 150KG to 2000KG. Or custom it as your requirements.
3. Some model handle's can be folded, more convenient for disassembly and assembly.
4. With high strong steel construction and scissors arm.
5. Fully enclosed cylinder to avoid oil leakage, which make long service life for users.
6. Easy operated foot pedal for hydraulic lifting of lift table.
7. Convenient hand finger/ foot pedal for down of manual lift table.
8. All PU casters with safety wheel guard enhance when working. And it is easily moved in door.
9. Four casters of lift table, 2 swivel with brakes, 2 rigid.
10. Also can be custom tilt platform according your warehouse/machinery.
| Model | Load Capacity (kg) | Lowest Height (mm) | Max.Height (mm) | Table Dimensions (mm) | Dia.of Wheel (mm) | Net Height(kg) | Packing Size(mm) | Load in 20 Container(PCS) |
| PT150Z | 150 | 210 | 720 | 700*450*35 | Φ100 | 40 | 820*470*230 | 280 |
| PT300Z | 300 | 280 | 900 | 815*500*50 | Φ125 | 74 | 900*510*310 | 168 |
| PT500Z | 500 | 280 | 900 | 815*500*50 | Φ125 | 82 | 900*510*310 | 168 |
| PT150A | 150 | 210 | 720 | 700*450*35 | Φ100 | 40 | 820*470*230 | 280 |
| PT300A | 300 | 280 | 900 | 815*500*50 | Φ125 | 74 | 900*510*310 | 168 |
| PT500A | 500 | 280 | 900 | 815*500*50 | Φ125 | 82 | 900*510*310 | 168 |
| PT750A | 750 | 415 | 1000 | 1000*510*55 | Φ150 | 112 | 1140*570*425 | 100 |
| PT800A | 800 | 415 | 1000 | 1016*500*55 | Φ150 | 112 | 1140*570*450 | 100 |
| PT1000A | 1000 | 415 | 1000 | 1016*500*55 | Φ150 | 112 | 1140*570*450 | 100 |
| PT1500A | 1000 | 415 | 1000 | 1016*500*55 | Φ150 | 112 | 1140*570*450 | 100 |
| PT300B | 300 | 280 | 900 | 815*500*50 | Φ125 | 76 | 900*510*290 | 168 |
| PT500B | 500 | 280 | 900 | 815*500*50 | Φ125 | 84 | 900*510*290 | 168 |
| PT750B | 750 | 415 | 1000 | 1000*510*55 | Φ150 | 114 | 1140*570*425 | 100 |
| PT800B | 800 | 415 | 1000 | 1016*510*60 | Φ150 | 114 | 1140*570*425 | 100 |
| PT1000B | 1000 | 415 | 1000 | 1016*510*60 | Φ150 | 114 | 1140*570*425 | 100 |
| PTS150 | 150 | 302 | 1260 | 700*450*35 | Φ100 | 50 | 820*470*325 | 192 |
| PTS350A | 350 | 350 | 1300 | 905*500*50 | Φ125 | 106 | 1010*520*380 | 132 |
| PTS500 | 500 | 350 | 1500 | 905*500*50 | Φ125 | 110 | 1020*520*360 | 132 |
| PTS750 | 750 | 450 | 1500 | 1200*610*58 | Φ125 | 150 | 1380*610*460 | 60 |
| PTS800 | 800 | 450 | 1500 | 1200*610*58 | Φ125 | 150 | 1380*610*460 | 60 |
| PTS1000 | 1000 | 500 | 1700 | 1200*610*80 | Φ150 | 225 | 1370*610*500 | 52 |
| PT500C | 500 | 280 | 900 | 815*500*50 | Φ125 | 82 | 900*510*310 | 168 |
| PTD500 | 500 | 280 | 900 | 1600*800*50 | Φ125 | 120 | 1680*800*290 | 62 |
| PTD1000 | 1000 | 380 | 1000 | 1200*610*80 | Φ150 | 165 | 1370*620*390 | 65 |
| PTD1500 | 1500 | 380 | 1000 | 1200*610*80 | Φ150 | 165 | 1370*620*390 | 65 |
| PTD2000 | 2000 | 380 | 1000 | 1200*610*80 | Φ150 | 165 | 1370*620*390 | 65 |
Noted: Manual lift table also can be custom as your requirements!
Main Features:
| Product name | Manual lift table/Mini scissor lift |
| Material | High strengthen steel and bear heavy duty caster or Stainless steel |
| Plaform size | Usually as our standard size or custom for you |
| Other type platform | Rollers, Universal balls, Tilt, Guardrail, Edge plate, Without wheels, Rotary table, Radian,etc. |
| Loading capacity | 150kg-2000kg |
| Lifting type | Manual hydraulic lifting by foot-operated |
| Decline/Down | Manual foot pedal/Finger for releasing |
| Oil cylinder | Fully enclosed cylinder |
| Caster | Polyurethane(PU) wheel |
| Safety device | Overload valves to protect lift table |
| Application | Warehouse, logistics, factory to transfer goods/cargos |
Optional Configuration:
Applications:
Manual lift table:
