|Product Name:||High Strengthen Manganese Q345B Scissors Arm Aerial Self-propelled Lifting Platform||Loading Capacity:||320kg|
|Keyword:||Self-propelled Lifting Platform||Powe Voltage:||DC24V Battery, AC415V/318V 50HZ Voltage|
|Lifting Height:||8m||Material:||High Strengthen Manganese Q345B And Anti-skid Platform With Extendable|
|Walking Type:||Full Electric Scissor Mechanism||Safety Device:||Anti-explosion Valves|
|Safety Device 2:||Safety Emergency Decline||Application:||Outdoor Aerial Working Equipment|
battery operated scissor lift,
heavy duty scissor lift
High Strengthen Manganese Q345B Scissors Arm Aerial Self-propelled Lifting Platform
1. Self-propelled lifting platform is a professional safety mobile and portable full electric scissor lift for aerial working platform.
2. Full electric wheel driving.Which single person can operate lift.
3. Working platform material is anti-skid diamond platform, scissors material are high-strength manganese steel structure and solid tyre wheel.
4. Lifting height is from 3m-16m, or as your custom.
5. Power voltage, it can be custom DC24V battery or AC415V and others.
6. Self-propelled sciss lift is widely used indoor/outdoor aerial working platform in the workshop,warehouse, enterprise, hotel.It is suitable for 1-2 persons working on the platfrom at the same time.
7. Scissor mechanical structure by electric hydraulic.
8. Safety device, there is a over height protected, explosion proof valves and manual lowering valve.
9. Specially requirement: can be added gradienter to make sure more banlance
10. Two control boxes, one box is operated on platform.
|Working Height (m)||8.00M||10.00M||12.00M||14.00M|
|Platform Height Max.(m)||6.00M||8.00M||10.00M||12.00M|
|Platform Height Stowed.(m)||1.85M||1.87M||1.91M||2.03M|
|Platform Extension Length(m)||0.90M||0.90M||0.90M||0.90M|
|Extendable Platform Capacity||113KG||113KG||113KG||113KG|
|Min steering radius||2.10M||2.20M||2.20M||2.20M|
|Drive Speed (Lowered)(km/h)||3.0km/h||3.0km/h||3.0km/h||3.0km/h|
|Drive Speed (Elevated)(km/h)||0.8km/h||0.8km/h||0.8km/h||0.8km/h|
|Overall Width (m)||0.81m||1.15m||1.15m||1.15m|
|Platform Size (m)||2.27*0.81m||2.27*1.12m||2.27*1.12m||2.27*1.12m|
|Size of driving wheel solid tires||15*5||15*5||15*5||15*5|
Noted: Mobile scissor lift also can be custom as your requirements!
Mobile scissor lift Safety precautions:

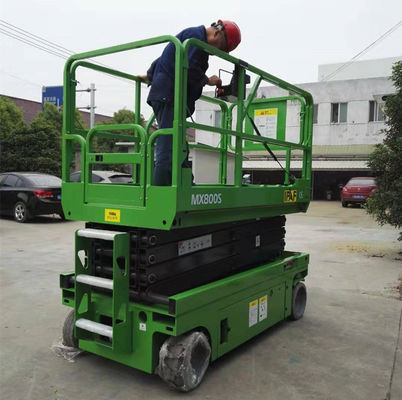

Self-propelled scissor lift reference pictures:
