AC 380V 50HZ Hydraulic Dock Levelers Loading And Unloading Goods For Forklift From Warehouse

AC 380V 50HZ Hydraulic Dock Levelers Loading And Unloading Goods For Forklift From Warehouse
AC 380V 50HZ Hydraulic Dock Levelers Loading And Unloading Goods For Forklift From Warehouse AC 380V 50HZ Hydraulic Dock Levelers Loading And Unloading Goods For Forklift From Warehouse AC 380V 50HZ Hydraulic Dock Levelers Loading And Unloading Goods For Forklift From Warehouse

Large Image :  AC 380V 50HZ Hydraulic Dock Levelers Loading And Unloading Goods For Forklift From Warehouse

Product Details:
Place of Origin: China
Brand Name: Kinglift
Certification: CE ISO
Model Number: DCQ6-0.5/DCQ8-0.5/DCQ10-0.5
Payment & Shipping Terms:
Minimum Order Quantity: 1unit
Price: Negotiable
Packaging Details: Wrapped in the paperboard or bubble film.
Delivery Time: 7-15days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 80 sets/month
Detailed Product Description
Product Name: Forklift Hydraulic Dock Leveler Load Capacity: 6000KG/8000KG/10000KG
Working Range: +400mm, -300mm Platform Size: 2000*2000mm,2000*3000mm
Input Power: AC 380V 50HZ Lip Width: 400mm
Application: Loading And Unloading Goods For Forklift Installation Site: Warehouse
High Light:

hydraulic dock lift

,

hydraulic dock plate

AC 380V 50HZ Hydraulic Dock Levelers Loading And Unloading Goods For Forklift From Warehouse



Forklift Hydraulic Dock Leveler Description:

  • King-lift Forklift Hydraulic Dock Levelers are the best in the industry. It’s no wonder they’re the preferred equipment choice for thousands of high-volume loading docks around the world.Hydraulic dock leveler provide a smooth transition for forklifts from warehouse floor to trailer beds – even on out of balance trailers – with a constant radius rear hinge, two-point crown control, and an optimized lip chamfer.

  • Hydraulic Forklift Dock Leveler which is crucial for unloading and loading trailers and trucks. Most importantly, dock levelers help reduce the chances of accidents.Safer working conditions lead to better work environments and happier employees, and happier employees lead to a productive business.
Model Capacity (kg)

Platform size

(mm)L*W

Lip size

(mm)L1*W1

Adjustable height

(mm)

Power

(kw)

Pit size

(mm)

UP(+) Down(-) L W H
DCQ6-0.5 6000 2000*2000 400 400 300 0.75 2010 2040 600
DCQ8-0.5 8000 2000*2000 400 400 300 0.75 2010 2040 600
DCQ10-0.5 10000 2000*2000 400 400 300 0.75 2010 2040 600
DCQ12-0.5 12000 2000*2000 400 400 300 1.1 2010 2040 600
DCQ15-0.5 15000 2000*2000 400 400 300 1.1 2010 2040 600



Noted: Usually the power ramp width is 1800mm or 2000mm, Normal length is 2000mm/3000mm. But we can make 5m extreme length power ramp.Also can make it as your requirements.





Main Features:

  • 1. 16mm thickness diamond lip.
  • 2. Heavay duty deck construction. 8 pieces " L" or " U" support under the platform
  • 3. Anti-skid diamonds steel on the top face of platform.
  • 4. 400mm width one -piece lip in hinges type or sleeve type for option.
  • 5. Heavy duty high pressure cylinders
  • 6. First class hydraulic power unit, good seal capacity and long life
  • 7.250mm×250×100mm rubber bumpes to protect it-self when truck reverse to dock platform.
  • 8. Full range toe guard plate at both side to protect user.



Configurations:

  • Electric system: Schneider contactor, CHINT electrical components ( Made In China)
  • Hydraulic System: KS brand power pack ,other brands (Made In China) or imported power pack
  • Platform Surface : Antiskid checkered plate sheet.Thickness 6mm/8mm/10mm
  • Main Support: 10# I beam
  • Lip thickness: 16mm checkered plate
  • Top face steel sheet on the deck:6mm/8mm/10mm optional
  • High-pressure oil hose: Rubber hose with double wire steel mesh.
  • Surface treatment: Power coating.

Optional Configuration:

  • Hydraulic Power Pack: China power pack or imported power pack as your requirements
  • Electric controller with emergency or without emergency button.
  • Color: Yellow. Orange. Blue. Grey.



Applications:



1. Site: Suitable for loading and unloading logistic centre,  warehouse, station, wharf, warehouse, postal dock of transportation

2. Power ramp use: Loading/unloading Cargo or Goods etc.

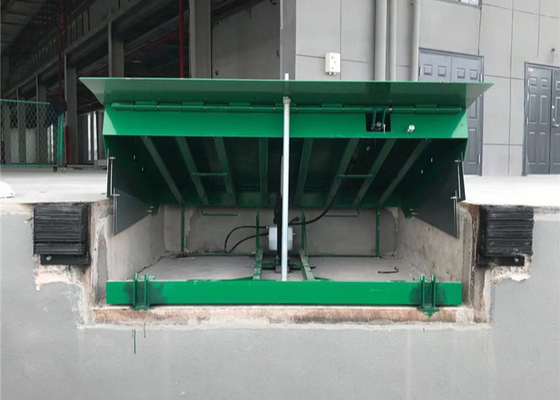

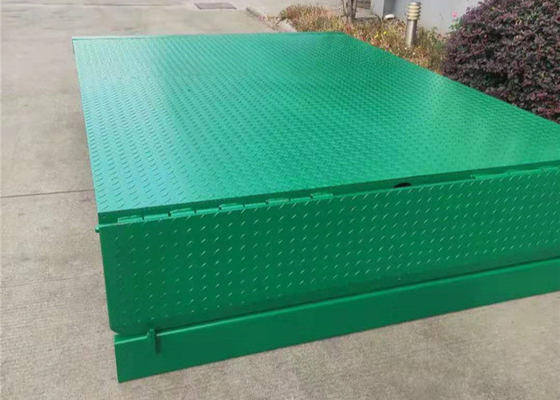

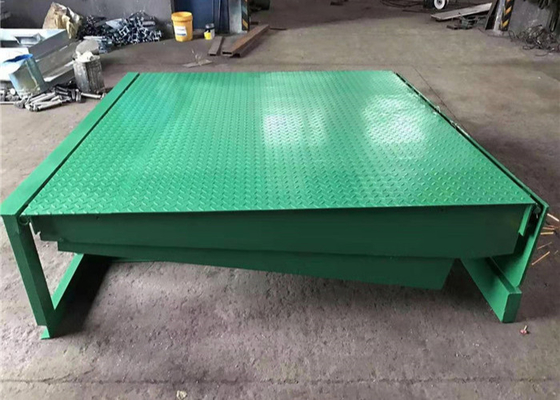

Power ramp pictures:

AC 380V 50HZ Hydraulic Dock Levelers Loading And Unloading Goods For Forklift From Warehouse 0

AC 380V 50HZ Hydraulic Dock Levelers Loading And Unloading Goods For Forklift From Warehouse 1

Power ramp safety precaution:

1. Emergency stop button

2. 2 pieces toe guards plate at the dock equipments both side to protect feet of the worker.

3. Maintaince rod break though the lip, fully protect the safety of serviceman.

4. Bumper block protect the dock leveler it-self when lorry reverse to platform.

5. High pressure oil tube with steel mesh can bear Max oil pressure 48MPA.

6. 24V low voltage to operate the electric dock leveler
