6 Ton Hydraulic Loading Dock Truck Dock Leveler Fast Efficiency For Handling Equipment Loading And Unloading

Certification
China Kunshan King Lift Equipment Co., Ltd certification
China Kunshan King Lift Equipment Co., Ltd certification
I'm Online Chat Now

6 Ton Hydraulic Loading Dock Truck Dock Leveler Fast Efficiency For Handling Equipment Loading And Unloading

6 Ton Hydraulic Loading Dock Truck Dock Leveler Fast Efficiency For Handling Equipment Loading And Unloading
6 Ton Hydraulic Loading Dock Truck Dock Leveler Fast Efficiency For Handling Equipment Loading And Unloading 6 Ton Hydraulic Loading Dock Truck Dock Leveler Fast Efficiency For Handling Equipment Loading And Unloading 6 Ton Hydraulic Loading Dock Truck Dock Leveler Fast Efficiency For Handling Equipment Loading And Unloading

Large Image :  6 Ton Hydraulic Loading Dock Truck Dock Leveler Fast Efficiency For Handling Equipment Loading And Unloading

Product Details:
Place of Origin: China
Brand Name: Kinglift
Certification: CE ISO
Model Number: DCQ6-0.5
Payment & Shipping Terms:
Minimum Order Quantity: 1unit
Price: Negotiable
Packaging Details: Wrapped in the paperboard or bubble film.
Delivery Time: 7-15days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 80 sets/month
Detailed Product Description
Product Name: Hydraulic Truck Dock Leveler Keyword Name: Hydraulic Loading Dock Leveler
Load Capacity: 6 Ton Deck Size: 2000*2000mm
Working Range: +400mm, -300mm Hydraulic Power: 0.75KW/1.1KW
Lip Width: 400mm Function: Fast Efficiency For Loading And Unloading
High Light:

hydraulic dock lift

,

hydraulic loading platform

6 Ton Hydraulic Loading Dock Truck Dock Leveler Fast Efficiency For Handling Equipment Loading And Unloading



Hydraulic Truck Dock Leveler Description:

  • Hydraulic dock leveler which is crucial for unloading and loading trailers and trucks.Having a correct hydraulic dock leveler considering your truck’s height and load capacity is essential for smooth and safe unloading and loading operations. Most importantly, dock levelers help reduce the chances of accidents.Safer working conditions lead to better work environments and happier employees, and happier employees lead to a productive business.

Model Capacity (kg)

Platform size

(mm)L*W

Lip size

(mm)L1*W1

Adjustable height

(mm)

Power

(kw)

Pit size

(mm)

UP(+) Down(-) L W H
DCQ6-0.5 6000 2000*2000 400 400 300 0.75 2010 2040 600
DCQ8-0.5 8000 2000*2000 400 400 300 0.75 2010 2040 600
DCQ10-0.5 10000 2000*2000 400 400 300 0.75 2010 2040 600
DCQ12-0.5 12000 2000*2000 400 400 300 1.1 2010 2040 600
DCQ15-0.5 15000 2000*2000 400 400 300 1.1 2010 2040 600



Noted: Usually the hydraulic dock lifts or dock levelers width is 1800mm or 2000mm, Normal length is 2000mm/3000mm. But we can make 5m extreme length hydraulic dock lifts or dock levelers.Also can make it as your requirements.





Main Features:

  • 1. 16mm thickness diamond lip.
  • 2. Heavay duty deck construction. 8 pieces " L" or " U" support under the platform
  • 3. Anti-skid diamonds steel on the top face of platform.
  • 4. 400mm width one -piece lip in hinges type or sleeve type for option.
  • 5. Heavy duty high pressure cylinders
  • 6. First class hydraulic power unit, good seal capacity and long life
  • 7.250mm×250×100mm rubber bumpes to protect it-self when truck reverse to dock platform.
  • 8. Full range toe guard plate at both side to protect user.



Configurations:

  • Electric system: Schneider contactor, CHINT electrical components ( Made In China)
  • Hydraulic System: KS brand power pack ,other brands (Made In China) or imported power pack
  • Platform Surface : Antiskid checkered plate sheet.Thickness 6mm/8mm/10mm
  • Main Support: 10# I beam
  • Lip thickness: 16mm checkered plate
  • Top face steel sheet on the deck:6mm/8mm/10mm optional
  • High-pressure oil hose: Rubber hose with double wire steel mesh.
  • Surface treatment: Power coating.

Optional Configuration:

  • Hydraulic Power Pack: China power pack or imported power pack as your requirements
  • Electric controller with emergency or without emergency button.
  • Color: Yellow. Orange. Blue. Grey.



Applications:



1. Site: Suitable for loading and unloading logistic centre,  warehouse, station, wharf, warehouse, postal dock of transportation

2. Power ramp use: Loading/unloading Cargo or Goods etc.

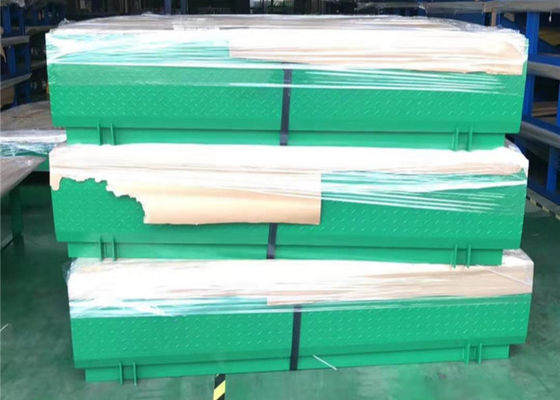

Hydraulic dock lifts or dock levelers pictures:

6 Ton Hydraulic Loading Dock Truck Dock Leveler Fast Efficiency For Handling Equipment Loading And Unloading 0

6 Ton Hydraulic Loading Dock Truck Dock Leveler Fast Efficiency For Handling Equipment Loading And Unloading 1



Hydraulic dock lifts or dock levelers​ safety precaution:

1. Emergency stop button

2. 2 pieces toe guards plate at the dock equipments both side to protect feet of the worker.

3. Maintaince rod break though the lip, fully protect the safety of serviceman.

4. Bumper block protect the dock leveler it-self when lorry reverse to platform.

5. High pressure oil tube with steel mesh can bear Max oil pressure 48MPA.

6. 24V low voltage to operate the electric dock leveler
