8T Loading Bay Dock Levellers, Storing Dock leveller Loading Cargoes From Trailer

8ton Loading Bay Dock Levellers Are Useful For Vertical Storing Dock To Loading And Unloading Cargoes From Trailer

Loading bay dock levellers description:

• Loading bay dock levellers of King-Lift Brand has been manufacturing loading dock levelers from China. These premium levelers have been known as the strongest and most durable dock levelers in the industry, providing a smooth and efficient loading process. Electric dock levelers can be activated automatically or mechanically and are available as pit-style, edge-of-dock or vertical storing. Each leveler type comes in a variety of sizes and capacities to meet any loading dock requirements.
• Loading bay dock levellers is an efficient way to solve level the difference in height and distance between your warehouse floor and a docked vehicle. Our dock leveller with swing lip has a modular design and is easy to operate. This solution is particularly well suited for most warehousing sites where standard size vehicles operate.

Noted: Usually the loading bay dock levellers width is 1800mm / 2000mm, Normal length is 2000mm/2500mm/3000mm. Also can make it as your requirements.

Main Features:

• 1. One piece 16mm thickness diamond lip which lifting by dia 50mm oil cylinder.
• 2. 8 pieces " L" or " U" support under the platform make the deck strong.
• 3. Skid-proof checkered steel sheet on the top face of platform.
• 4. 400mm width lip in hinges type or sleeve type for option.
• 5. Heavy duty high pressure cylinders with "NOK" sealing.
• 6. KS Brand (Made In China) hydraulic power unit with good seal capacity and long life
• 7. 250mm×250×100mm rubber bumpes to protect it-self when truck reverse to dock platform.
• 8. Full range toe guard plate at both side to protect user.
• 9. 380V 50HZ or 415V 50HZ power voltage or others as customer require.

Configurations:

• Electric system: Simple controller with up/down button which is made in CHINT electrical components ( Made In China)
• Hydraulic System: KS brand power pack ,other brands (Made In China) or imported power pack as customer requirments.
• Platform Surface : Antiskid checkered plate sheet .Thickness 6mm/8mm/10mm
• Main Support: 10# I beam or other kinds of type steel support under the platform.
• Lip thickness: 16mm checkered plate
• Top face steel sheet on the deck:6mm/8mm/10mm optional
• High-pressure oil hose: Rubber hose with double wire steel mesh. It is can bear oil pressure Max.48MPA.
• Surface treatment: Power coating with color:green,blue, yellow, grey.

Optional Configuration:

• Hydraulic Power Pack: 0.75KW /1.1KW China power pack or imported power pack as your requirements
• Electric controller with emergency or without emergency button.
• Lip connecting in sleeve type or hinge type for option.
• Self-height is 500mm/600mm/700mm

Applications:

1. Site: Suitable for logistic centre,  warehouse, forwarding station, wharf, warehouse, postal dock of transportation

2. Loading bay dock levellers with bumpers  Application: Loading/unloading goods from containers or trucks etc.

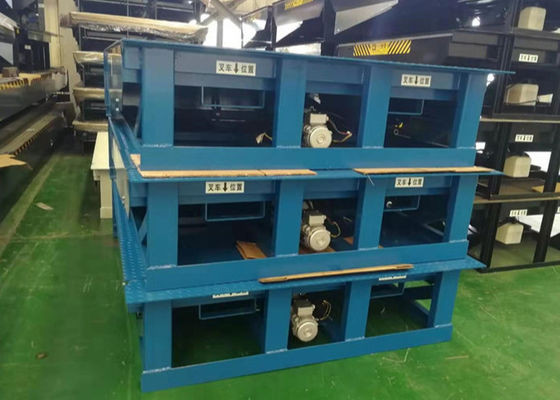

Loading bay dock levellers with bumpers pictures:

Loading bay dock levellers with bumpers​ safety precaution:

1. Emergency stop button

2. 2 pieces toe guard plates at the loading dock equipment both side to protect feet of the worker.

3. Maintaince rod break though the lip, fully protect the safety of serviceman.

4. 250×250×100mm Bumper cushion to protect the dock leveler it-self when truck reverse to platform.

5. High pressure rubber oil hose with double steel mesh in it.

6. 24V low voltage to operate the loading dock equipment
