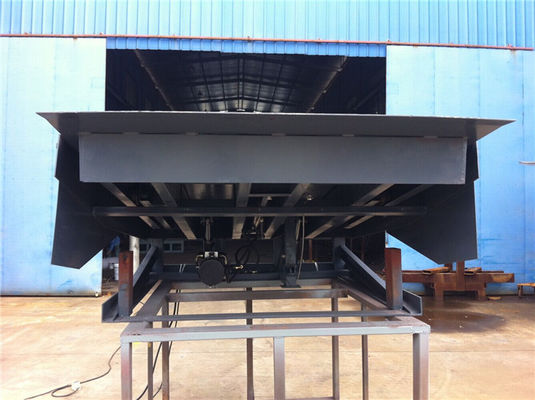

Fixed Pit-style Telescopic Dock Leveler With Retractable Lip Apply In Cold Storage Warehouse

Fixed Pit-style Telescopic Dock Leveler With Retractable Lip Apply In Cold Storage Warehouse

Pit-style Telescopic Dock Leveler Description:

• With the pit-style telescopic dock leveller,the sectional or roll-up door can be closed in front of the platform. So, the ramp remains inside the premises avoiding temperature losses and the entrance of dirt, dust, animals, etc.Thanks to the great length of the lip, this dock leveller is perfect for lateral loading and to load containers, because it can elude the truck protrusion or raised guides, as in the fruit refrigerated containers.

Noted: Usually the pit-style telescopic dock leveller width is 2000mm, it also can be custom as your requirements!.The retractable lip can extend telescopic reached 800mm/900/1000mm.

Main Features:

• 1. 20mm thickness milling flute plate make the telescopic lip
• 2. 8-10 pieces "C" or "H" beam to support heavay duty deck.
• 3. Anti-skid high-strength chequered steel on the top face of the platform .
• 4. Full width one -piece lip retractable movement by cylinder pushed
• 5. Heavy duty high pressure hydraulic cylinders
• 6. First class imported hydraulic power pack, good seal capacity and long lifespan
• 7. Rubber bumpers to protect machine-self when the truck reverse to dock platform.
• 8. Full range toe guard to protect user when operater use it.

Configurations:

• Electric system: Schneider contactor, CHINT electrical components
• Hydraulic System: ARGO-HYTOS Swiss brand power pack
• Platform Surface : 6mm/8mm/10mm Antiskid checkered plate
• Main Support: 8-10 pieces" C" or "H" beam under the deck to supporting.
• Deck lip platform thickness: 20mm milling flute plate
• High-pressure oil hose: Double steel mesh in the rubber hose.

Optional Configuration:

• Hydraulic Power Pack:ARGO-HYTOS Swiss brand.
• Electric controller with emergency or without emergency.

Applications:

1. Site: Work Shop, logistic center, big cold storge centre etc.

2. Pit-style telescopic dock leveller use: Loading/unloading Cargo etc.

Pit-style telescopic dock leveller ketch:

Pit-style telescopic dock leveler safety precaution:

1. Emergency button

2. Toe guards on both side to protect operation worker feet.

3. Maintaince rod break though the lip fully protect the safety of the serviceman.

4. Bumper block protect the dock leveler it-self when truck reverse to th.

5. Oil tube with steel mesh structure . Max oil pressure 48MPA.

6. Double cylinders support the lip telescopic that so stable and reliable.
