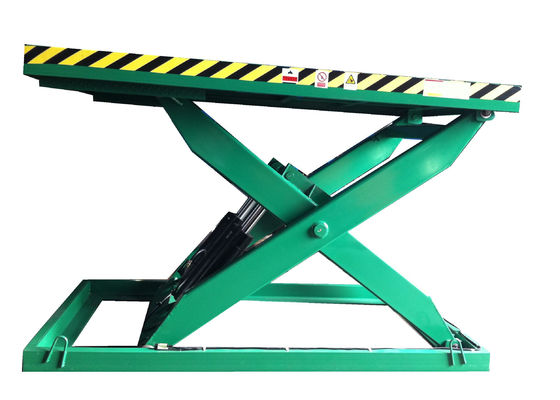

Green Color,1600mm Height Scissor Lift Dock Leveler 2500mm*3000mm Table Size

Green Color,1600mm Height Scissor Lift Dock Leveler 2500mm*3000mm Table Size
Green Color,1600mm Height Scissor Lift Dock Leveler 2500mm*3000mm Table Size Green Color,1600mm Height Scissor Lift Dock Leveler 2500mm*3000mm Table Size Green Color,1600mm Height Scissor Lift Dock Leveler 2500mm*3000mm Table Size

Large Image :  Green Color,1600mm Height Scissor Lift Dock Leveler 2500mm*3000mm Table Size

Product Details:
Place of Origin: China
Brand Name: Kinglift
Certification: CE
Model Number: KLSJG1.5-1.6
Payment & Shipping Terms:
Minimum Order Quantity: 1unit
Price: Negotiable
Packaging Details: Wrapped in bubble wrap
Delivery Time: 10-15days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 120sets/month
Detailed Product Description
Product Name: Scissor Lift Dock Leveler Loading Capacity: 1.5T Or Customization
Table Size: 2500mm*3000mm Or Customization Lifting Height: 1600mm Customization
Motor Power: 4.0kw Voltage: 380V Or 415V
Lifting Form: Hydraulic Electric Lifting
High Light:

loading bay lifts

,

loading unloading ramp

Green Color,1600mm Height Scissor Lift Dock Leveler 2500mm*3000mm Table Size

Description:

  • Designed scissor lift dock leveler to make loading and unloading operations easier and more efficient, Scissor lift dock leveler increase productivity, safety and efficiency while making your loading dock 100% accessible. Choose from a variety of lifting options, from hydraulic loading scissor lift dock leveler best suited for small spaces to the speedy and versatile level-lift.
  • Scissor lift dock leveler capacity can be varied from 300kg to 20-30tons, being applicable for kinds of working conditions. Also, it has high safety features and devices like removable safety railings, kick plate, snap chains and lip.

  • Scissor lift dock leveler is also named stationary scissor lift table, which have both scissor lift and dock leveler function, it is also widely use in warehouse to loading and unloading for truck or container. So usually loading scissor lift dock leveler also with lip, that lip is put down to connect with the container to fill up the gap then easy to unloading goods, when warehouse don't have loading bay of dock leveler, scissor lift dock leveler can be instead of dock leveler to loading cargos, the lip and platform are all anti-skid checkered surface material. In order to more suitable for your warehouse, hydraulic dock lift ,We supply customization service.



Model Capacity(KG) Min.height Max.height Platform size
L*W(mm)
Lifting time
(s)
Motor
(kw)
Self-weight (kg)
KLSJG1-5 1000 780 5000 2500*2000 62 4.0 2400
KLSJG3-1.6 3000 450 1800 3000*2000 32 4.0 1650
KLSJG3-2.5 3000 550 3050 2500*1500 50 3.0 1600
KLSJG4-3 4000 720 3000 2200*1500 30 4.0 1700
KLSJG4-5 5000 1000 5000 3000*2500 65 7.5 4500
KLSJG7-1.6 7000 980 1600 3000*2000 25 5.5 2480



Noted: Usually scissor lift dock leveler width is 2000mm, if over 2000mm width, it will need to spliced platform. And also can be custom as your requirements!


Main Features:

  • 1. Reinforced anti-skid checkered surface material, which can prevent people and goods slipping down, more safety
  • 2. Heavy duty & high strength manganese material construction
  • 3. Anti-skid high-strength chequered platform, and lip for optional, need or not.
  • 4. Full width one -piece or two lip for option
  • 5. Heavy duty high pressure cylinders
  • 6. First class hydraulic power unit, good seal capacity and long life
  • 7. Safety protected 1, with Explosion Proof Lock Valve
  • 8. Safety protected 2 for optional, with Safety toe guard to protect users if need


Parameters:

  • Electric system: Schneider contactor, CHINT electrical components ( Made In China)
  • Hydraulic System: Hycman brand power pack(Made In China) , Oiltec (Import brand) or as requirements
  • Scissor Arm Support: Hi-strength Manganese steel rectangle tube Q345 B
  • Platform Surface : Antiskid checkered plate steel
  • Main Support: 10# I beam
  • Deck lip platform steel thickness:6mm/8mm/10mm checkered plate(If need lip)
  • High-pressure Oil Pipe: Double wire-steel mesh in hydraulic rubber hose


Scissor Lift Dock Leveler precautions:
1. Emergency valves
2. Anti- Explosion safety valves between oil cylinder and oil tube.
3. Number of floor layers indicator
4. Door inter-locking device if indeed need.
5. Over height protect
6. Running indicator
7. Over load alarm

Optional Configuration:

  • Hydraulic Power Pack: China power pack or imported power pack as your requirements


Applications:
1. Site: Work Shop, logistic center, warehouse loading bay, etc.
2. Scissor lift dock leveler application: Lifting and Loading/unloading Cargo as dock leveler function, etc.


Scissor lift dock leveler sketch:

Green Color,1600mm Height Scissor Lift Dock Leveler 2500mm*3000mm Table Size 0
Green Color,1600mm Height Scissor Lift Dock Leveler 2500mm*3000mm Table Size 1Green Color,1600mm Height Scissor Lift Dock Leveler 2500mm*3000mm Table Size 2
