Product Details:

Payment & Shipping Terms:

Contact Now

Detailed Product Description

Product Name:	Good Thermal Insulation Energy-saving Polyester Fabric Container Dock Shelters	Dock Seal Size:	3400*3200mm
Application:	Container Dock Shelters With Dock Leveler And Dock Door	Material:	Industric PVC Polyester Fabric And High Destity Foam Pad
Warning Stripe:	With Yellow Stripes Guide Derives To The Dock	Function:	Good Thermal Insulation Energy-saving
Curtain Color:	Black & Yellow	Installation Base:	Concrete Platform
High Light:	loading dock seal pads , loading dock rain protection

Good Thermal Insulation Energy-saving Polyester Fabric Container Dock Shelters

Description:

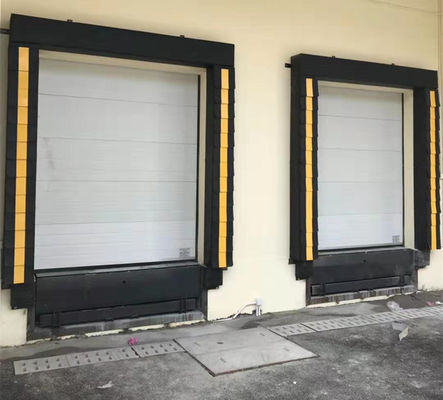

1. Sponge dock shelters, which is installed on the wall of dock door, forms a close space when vehicle pressed onto its surface. Usually it is installed with dock leveler, industrial door together for warehouse.
2. Sponge dock shelters has good seal thermal insulation function,environmental protection, free weather effect,significant resistance for insect entering and high efficiency during the loading and unloading. It is widely used for cold warehouse room to thermal insulation.
3. Sponge Dock Shelter Inside is filled with highly compressed sponge, with density of 30KG/m3. Special pressure-relief design can reduce the friction with dock and trucks. This will prolong work life of surface fabric.
4. Surface fabric:Made from PVC fabric with self-extinguishing function. Weight: 800g/sqm.There are fabric shutter folds on top beam and two side columns. Thus it can endure long-time friction and squeezing.
5. A wide selection of durable coated fabrics provide maximum durability.
6. Full length yellow strips guide drivers to the dock.
7. For the warehouse dock door, they are three types dock shelters for different warehouse, Mechanic dock shelter, Inflatable dock seal, Sponge dock shelters for optional.

Material	High quality density of 30KG/m³ Foam Pad Sponge Surface fabric PVC fabric with self-extinguishing function Standard size 3400mm3400mm , 32003200mm , 34003600mm,34003800mm,customized size is available 3400mm*3400mm is the standard size
Function	Rain proof, dust proof, wind proof, energy-saving
Adjustable Top Curtain	Top curtain is adjustalbe to provides flexible match of different truck heights.
Side material	High density foam pad sponge of 30KG/m³ With PVC surface
Tight Sealing Efficiency	Foam compression side pads tightly seal trailer sides for maximum sealing efficiency
Duplicate Protection	Rugged Armor Pleats Cover full length of side pads; provide extra abrasion protection and wear-resistance to extend the seal life.
Working temperature	-35℃~+70℃
Sealing system	Loading bay dock seal and vehicle restraint/container
Installation Base	Concrete platform
Using Area	Loading and unloading area
Low maintenance	Yes
Environmental protection	Yes
Safety System	Safe equipment with yellow stripes guide derives to the dock
Package	Pallet or in bulk.
Loading capacity	40sets in 20GP container

Noted: Usually dock shelters size is 3400*3400mm, if need custom it, also let us know your requirements!

Main Features:

1. Material:Double Weaved fabric PVC curtain, which is resist effecitively wear and bad weather.
2. Frame: Aluminum or Galvanized for optional.
3. Application: Using for outside loading bay door dock application.
4. Ambient Temperature: ≥-30 ℃.
5. Safety equipment: Triangle pad at the bottom and with yellow stripes guide derives to the dock.
6. Bright yellow reflective strip helps container/truck to berth accurately.
7. Dock shelters can suitable kinds of different size truck and different height of chassis, even container with tailplates.
8. Also suitable for loading bay site, which have dock leveler loading equipment.
9. Maximum door opening size up to 4mX4m.
10.Providing the closing space for the loading and unloading.

Optional Configuration:

Applications:

1. Site: Loading bays, Loading docks, Logistics, Cold rooms, Warehouse, Factories, etc.
2. Dock shelter application: good seal thermal function,environmental protection, free weather effect, etc.

Dock seal/shelter:
