PVC High Speed Door With Frequency Conversion Motor For Clean Room Anti Dust Of Factory

Certification
China Kunshan King Lift Equipment Co., Ltd certification
China Kunshan King Lift Equipment Co., Ltd certification
I'm Online Chat Now

PVC High Speed Door With Frequency Conversion Motor For Clean Room Anti Dust Of Factory

PVC High Speed Door With Frequency Conversion Motor For Clean Room Anti Dust Of Factory
PVC High Speed Door With Frequency Conversion Motor For Clean Room Anti Dust Of Factory PVC High Speed Door With Frequency Conversion Motor For Clean Room Anti Dust Of Factory PVC High Speed Door With Frequency Conversion Motor For Clean Room Anti Dust Of Factory PVC High Speed Door With Frequency Conversion Motor For Clean Room Anti Dust Of Factory

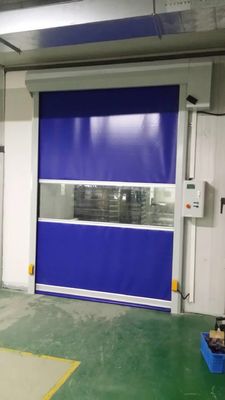

Large Image :  PVC High Speed Door With Frequency Conversion Motor For Clean Room Anti Dust Of Factory

Product Details:
Place of Origin: China
Brand Name: Kinglift
Certification: CE
Model Number: HSD32
Payment & Shipping Terms:
Minimum Order Quantity: 1unit
Price: Negotiable
Packaging Details: Wrapped in bubble wrap
Delivery Time: 10-15days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 200sets/month
Detailed Product Description
Product Name: PVC High Speed Door Keyword: Anti Dust High Speed Door
Color: Blue, Yellow, Red, Orange,etc. Curtain: High Density PVC Fabric
Frame: Galvanized Steel / 304 Stainless Steel Motor Power: 0.75KW Or As Door Size To Matched.
Voltage: AC220V 50HZ Function: Factory Clean Room Anti-dust
High Light:

high speed roller doors

,

high speed freezer doors

PVC High Speed Door With Frequency Conversion Motor For Clean Room Anti Dust Of Factory

Description:

  • 1. PVC High Speed Door is one of industrial door, curtain is made of high density polyester fiber(PVC Thickness 0.8mm),frame and track guide are Galvanized Steel / 304 Stainless Steel / Aluminum.
  • 2. Heat preservation,cold protection,anti-insect,anti-dust,sound insulation, fire prevention, anti-odor daylighting,etc.
  • 3. Door can be with visible panels to provide a view of areas on the opposite side of the doors.
  • 4. Square tube formed frame with static treatment on surface.
  • 5.Oxidation treatments on guide rail surface.
  • 6. Automatic or Manual open.
  • 7. Widely used in food, chemistry, textile, frozen electronics, printing, supermarket frozen assembly, precision machinery, logistics storage and other places.
  • 8. Make working place cleaner, also can save energy, improve the effect of air conditioning, high speed automatic open,etc advantages.



Product NameHigh Speed Door
Max. door sizeW6000*H6000MM
Visiable pannelVisiable window/Visiable pannel

Main body of door material

High density of PVC coating fiber,thickness 0.8MM.
Wind resistance reached 500ON.

Curtain colorBlue, Yellow, Red,Orange, Grey,etc.

Wind resistance rod

Wind Resistance Bar - Aluminum Extrusion
2.0mm aluminum wind resistance rod,oxidation treatment for face

Door frame and door slot

304 stainless steel with drawing technology,thickness 2mm

Opening Speed

0.8~1.5m/s

Closing Speed

0.6~1.0m/s

Operation way

Manual Romote control switch,Open and closed easy

Also have others open ways for option, like: Access Control, Magnetic loop,Radar
Control Box FinishPowder coated steel /304SS
Safety deviceInfrared safety photoelectricity
FunctionSave energy, Dust proof, Clean room,etc.
Others

Up&Down speed is based on the VFD,can adjust the speed meet your requirement

ApplicationFood factory, Electronic workshop, Warehouse, Clean room, Dustproof room, etc.


Noted: Usually Max. door size is 6000*6000mm, can be as your requirement.


Features:

  • 1. More curtain color for options:Blue, Yellow, Red,Orange, Grey,etc.
  • 2. Durable motor, specially for industrial door power pack, like: SEW, SEJ,ETC.
  • 3. Various operation ways for optionas: Manual Switch,Access Control, Magnetic loop,Radar.
  • 4. Stronger structure: 2.0mm aluminum wind resistance rod, and oxidation treatment for face.
  • 5. Visiable window or visiable panels for option.
  • 6. Bottom seal.
  • 7. Wind resistance bar.


Optional Configuration:

  • Hydraulic Power Pack: China power pack or imported power pack as your requirements


Applications:

  • 1. Site: Work Shop, logistic center, warehouse, room,etc.
  • 2. High speed door application: Food factory, Electronic workshop, Warehouse, Clean room, Dustproof room, etc.



High speed door
:
