Explosion Proof Valves Protected Warehouse Dock Grey Electric Dock Levelers For Wholesale

Explosion Proof Valves Protected Warehouse Dock Grey Electric Dock Levelers For Wholesale

Warehouse Dock Leveler For Sale:

• Pit style warehouse dock leveler are an integral part of loading bays all over the world. These durable units provide a smooth path for cross-docking traffic, reducing bumps and bouncing that can injure forklift drivers and damage both equipment and cargo.
• Warehouse dock leveler utilize fully powered raise and lip extension functions with hydraulic cylinders and individual or multi-unit hydraulic pump and motor stations. They’re also the safest loading dock choice, as these levelers contain in-line velocity fuses to prevent free fall in a truck pull-out situation.

Noted: Usually the electric dock levelers width is 1800mm / 2000mm, Normal length is 2000mm/2500mm/3000mm. Also can make it as your requirements.

Main Features:

• 1. One piece 16mm thickness diamond lip which lifting by dia 50mm oil cylinder.
• 2. 8 pieces " L" or " U" support under the platform make the deck strong.
• 3. Skid-proof checkered steel sheet on the top face of platform.
• 4. 400mm width lip in hinges type or sleeve type for option.
• 5. Heavy duty high pressure cylinders with Japanese Brand sealing.
• 6. KS Brand (Made In China) hydraulic power unit with good seal capacity and long life
• 7. 250mm×250×100mm rubber bumpes to protect it-self when truck reverse to dock platform.
• 8. Full range toe guard plate at both side to protect user.

Configurations:

• 1.Electric system: Simple controller with up/down button which is made in CHINT electrical components ( Made In China)
• 2.Hydraulic System: KS brand power pack ,other brands (Made In China) or imported power pack as customer requirments.
• 3.Platform Surface : Antiskid checkered plate sheet .Thickness 6mm/8mm/10mm
• 4.Main Support: 10# I beam or other kinds of type steel support under the platform.
• 5.Lip thickness: 16mm checkered plate
• 6.Top face steel sheet on the deck:6mm/8mm/10mm optional
• 7.High-pressure oil hose: Rubber hose with double wire steel mesh. It is can bear oil pressure Max.48MPA.
• 8.Surface treatment: Power coating or Spray paint.

Optional Configuration:

• Hydraulic Power Pack: 0.75KW /1.1KW China power pack or imported power pack as your requirements
• Electric controller with emergency or without emergency button.
• Lip connecting in sleeve type or hinged type for option.

Applications:

• 1. Site: Suitable for loading and unloading logistic centre,  warehouse, forwarding station, wharf, warehouse, postal dock of transportation
• 2. Electr hydaulic dock levelers Application: Loading/unloading goods from containers or trucks etc.

Right height dock levelers​​ safety precaution:

• 1. Emergency stop button
• 2. 2 pieces toe guard plates at the loading dock equipment both side to protect feet of the worker.
• 3. Maintaince rod break though the lip, fully protect the safety of serviceman.
• 4. 250×250×100mm Bumper cushion to protect the dock leveler it-self when truck reverse to platform.
• 5. High pressure rubber oil hose with double steel mesh in it.
• 6. 24V low voltage to operate the loading dock equipment

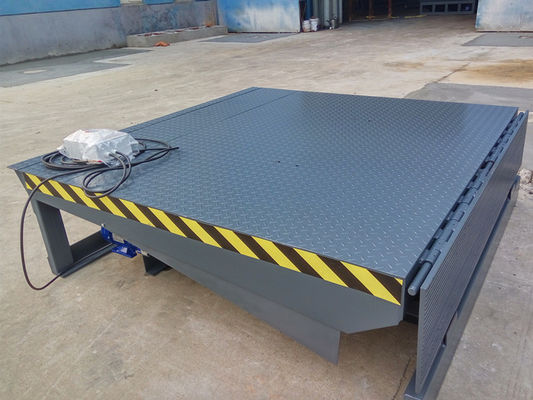

Electric dock levelers pictures:
