13600KG Heavy Load Capacity Forklift Electric Dock Levelers With Two Oil Cylinders Lifting

13600KG Heavy Load Capacity Forklift Electric Dock Levelers With Two Oil Cylinders Lifting
13600KG Heavy Load Capacity Forklift Electric Dock Levelers With Two Oil Cylinders Lifting
video play

Large Image :  13600KG Heavy Load Capacity Forklift Electric Dock Levelers With Two Oil Cylinders Lifting

Product Details:
Place of Origin: China
Brand Name: Kinglift
Certification: CE ISO
Model Number: DCQ13.6-0.5
Payment & Shipping Terms:
Minimum Order Quantity: 1unit
Price: Negotiable

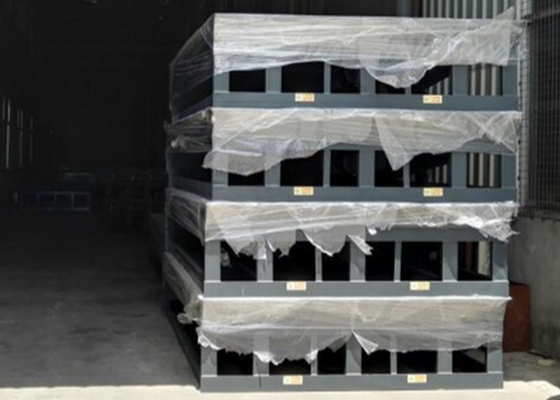

Packaging Details: Wrapped in the bubble film or folding carton board.
Delivery Time: 7-25days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 150 sets per month
Detailed Product Description
Product Name: Heavy Load Capacity Dock Levelers Key Words: Forklift Electric Dock Levelers
Payload: 13600KG Working Range: +305mm, -305mm
Platform Size: 1830*2180mm Power Unit: 1.1KW
Lip Width: 400MM, 450MM Or Customization Lifting Cylinders: Two Oil Cylinders
High Light:

auto dock leveler

,

loading dock equipment

13600KG Heavy Load Capacity Forklift Electric Dock Levelers With Two Oil Cylinders Lifting



Heavy Load Capacity Dock Levelers For Sale:

  • Pit Style Heavy Load Capacity Dock Levelers are an integral part of loading bays all over the world.These durable units provide a smooth transition for forklifts from warehouse floor to trailer beds – even on out of balance trailers – with a constant radius rear hinge, two-point crown control, and an optimized lip chamfer.

  • Heavy Load Capacity Dock Levelers are push-button activated and have the highest capacity available.They with swing lip has a modular design and is easy to operate. This solution is particularly well suited for most warehousing sites where standard size vehicles operate.Also the dock levellers can be supplied in many dimensions, load capacities and working ranges. A full range of options and operating methods are available to offer a solution for every customer bespoke situation.

Model Capacity (kg)

Platform size

(mm)L*W

Lip size

(mm)L1*W1

Adjustable height

(mm)

Power

(kw)

Pit size

(mm)

UP(+) Down(-) L W H
DCQ6-0.5 6000 2000*2000 400 400 300 0.75 2010 2040 600
DCQ8-0.5 8000 2000*2000 400 400 300 0.75 2010 2040 600
DCQ10-0.5 10000 2000*2000 400 400 300 0.75 2010 2040 600
DCQ12-0.5 12000 2000*2000 400 400 300 1.1 2010 2040 600
DCQ15-0.5 15000 2000*2000 400 400 300 1.1 2010 2040 600



Noted: Usually the electric dock levelers width is 1800mm / 2000mm, Normal length is 2000mm/2500mm/3000mm. Also can make it as your requirements.



Main Features:

  • 1. One piece 16mm thickness diamond lip which lifting by dia 50mm oil cylinder.
  • 2. 8 pieces " L" or " U" support under the platform make the deck strong.
  • 3. Skid-proof checkered steel sheet on the top face of platform.
  • 4. 400mm width lip in hinges type or sleeve type for option.
  • 5. Heavy duty high pressure cylinders with "NOK" sealing.
  • 6. KS Brand (Made In China) hydraulic power unit with good seal capacity and long life
  • 7. 250mm×250×100mm rubber bumpes to protect it-self when truck reverse to dock platform.
  • 8. Full range toe guard plate at both side to protect user.



Configurations:

  • 1.Electric system: Simple controller with up/down button which is made in CHINT electrical components ( Made In China)
  • 2.Hydraulic System: KS brand power pack ,other brands (Made In China) or imported power pack as customer requirments.
  • 3.Platform Surface : Antiskid checkered plate sheet .Thickness 6mm/8mm/10mm
  • 4.Main Support: 10# I beam or other kinds of type steel support under the platform.
  • 5.Lip thickness: 16mm checkered plate
  • 6.Top face steel sheet on the deck:6mm/8mm/10mm optional
  • 7.High-pressure oil hose: Rubber hose with double wire steel mesh. It is can bear oil pressure Max.48MPA.
  • 8.Surface treatment: Power coating or Spray paint.



Optional Configuration:

  • Hydraulic Power Pack: 0.75KW /1.1KW China power pack or imported power pack as your requirements
  • Electric controller with emergency or without emergency button.
  • Lip connecting in sleeve type or hinged type for option.



Applications:



  • 1. Site: Suitable for loading and unloading logistic centre,  warehouse, forwarding station, wharf, warehouse, postal dock of transportation
  • 2. Electr hydaulic dock levelers Application: Loading/unloading goods from containers or trucks etc.





Right height dock levelers​​ safety precaution:

  • 1. Emergency stop button
  • 2. 2 pieces toe guard plates at the loading dock equipment both side to protect feet of the worker.
  • 3. Maintaince rod break though the lip, fully protect the safety of serviceman.
  • 4. 250×250×100mm Bumper cushion to protect the dock leveler it-self when truck reverse to platform.
  • 5. High pressure rubber oil hose with double steel mesh in it.
  • 6. 24V low voltage to operate the loading dock equipment

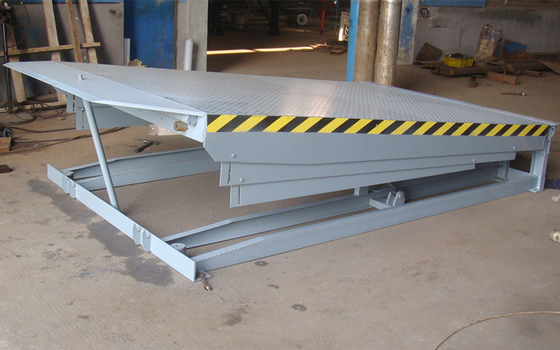

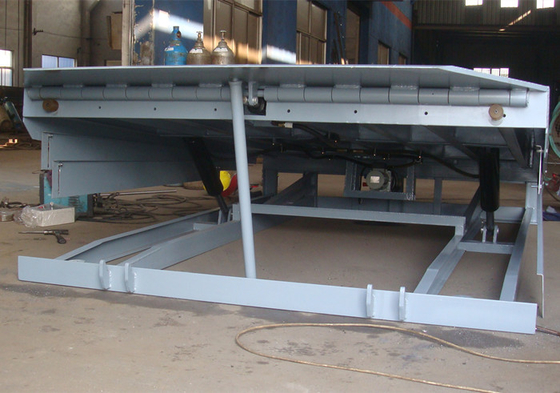

Electric dock levelers pictures:



13600KG Heavy Load Capacity Forklift Electric Dock Levelers With Two Oil Cylinders Lifting 0
