Product Details:
Payment & Shipping Terms:
|
Keywords Name: | Pit-Style Hydraulic Dock Leveler | Load Capacity: | 6000KG |
---|---|---|---|
Working Range: | +700mm ,-300mm Or Custom-made | Platform Size: | 2000*3500mm |
Lip Width: | 400mm, 450mm Or Customization | Power: | 0.75KW/1.1KW |
Category: | Container Loading Bay Equipment | Installation Type: | Pit-Style |
High Light: | auto dock leveler,loading systems dock levellers |

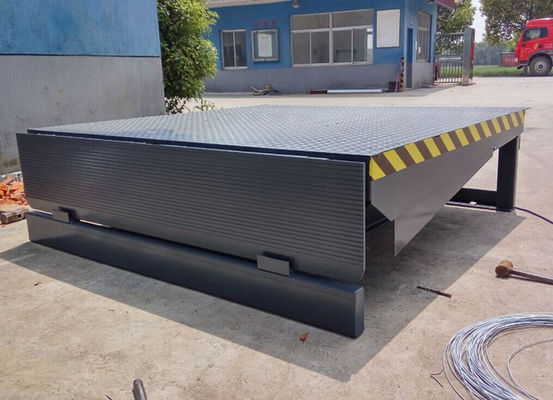

Pit-style Container Loading Bay Equipment 6000KG Hydraulic Electric Dock Leveler
Pit-Style Hydraulic Dock Leveler For Sale:
Model | Capacity (kg) |
Platform size (mm)L*W |
Lip size (mm)L1*W1 |
Adjustable height (mm) |
Power (kw) |
Pit size (mm) |
|||
UP(+) | Down(-) | L | W | H | |||||
DCQ6-0.5 | 6000 | 2000*2000 | 400 | 400 | 300 | 0.75 | 2010 | 2040 | 600 |
DCQ8-0.5 | 8000 | 2000*2000 | 400 | 400 | 300 | 0.75 | 2010 | 2040 | 600 |
DCQ10-0.5 | 10000 | 2000*2000 | 400 | 400 | 300 | 0.75 | 2010 | 2040 | 600 |
DCQ12-0.5 | 12000 | 2000*2000 | 400 | 400 | 300 | 1.1 | 2010 | 2040 | 600 |
DCQ15-0.5 | 15000 | 2000*2000 | 400 | 400 | 300 | 1.1 | 2010 | 2040 | 600 |
Noted: Usually the electric dock levelers width is 1800mm / 2000mm, Normal length is 2000mm/2500mm/3000mm. Also can make it as your requirements.
Main Features:
Configurations:
Optional Configuration:
Applications:
Right height dock levelers safety precaution:
Electric dock levelers pictures:
