Custom-made Free-Standing Frame 10T Hydraulic Electric Dock Leveler For Warehouse

I'm Online Chat Now

Custom-made Free-Standing Frame 10T Hydraulic Electric Dock Leveler For Warehouse

Custom-made Free-Standing Frame 10T Hydraulic Electric Dock Leveler For Warehouse
Custom-made Free-Standing Frame 10T Hydraulic Electric Dock Leveler For Warehouse Custom-made Free-Standing Frame 10T Hydraulic Electric Dock Leveler For Warehouse

Large Image :  Custom-made Free-Standing Frame 10T Hydraulic Electric Dock Leveler For Warehouse

Product Details:
Place of Origin: China
Brand Name: Kinglift
Certification: CE ISO
Model Number: DCQ10-0.5
Payment & Shipping Terms:
Minimum Order Quantity: 1unit
Price: Negotiable
Packaging Details: Wrapped in the bubble film or folding carton board.
Delivery Time: 7-25days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 150 sets per month
Detailed Product Description
Keywords: Free-Standing Frame Dock Leveler Load Capacity: 10T
Working Range: +400mm, -300mm Or Customization Platform Size: 2000*2500mm
Power: 0.75KW/1.1KW Lip Width: 400mm Or Customization
Voltage: 380V 50HZ , 415V Options: Guard Rails With Or Without
Application Field: Warehouse Color: Beige, Grey
Highlight:

loading systems dock levellers

,

loading dock equipment

Custom-made Free-Standing Frame 10T Hydraulic Electric Dock Leveler For Warehouse



Free-Standing Frame Dock Leveler For Sale:

  • Dock levelers is the auxiliary dock equipment for cargoes loading and unloading from warehouse dock loading equipment.If floor space is limited, a free standing frame assembly can support the installation of a dock leveler outside a building. Free-standing frames can also be implemented to avoid re-routing gas and water lines and other connections beneath a floor surface.
  • King Lift Free Standing Frame Dock Leveller consists of a fully integrated free-standing frame and a hinged lip dock leveller. This solution is designed to ease the process of transport and installation.
Model Capacity (kg)

Platform size

(mm)L*W

Lip size

(mm)L1*W1

Adjustable height

(mm)

Power

(kw)

Pit size

(mm)

UP(+) Down(-) L W H
DCQ6-0.5 6000 2000*2000 400 400 300 0.75 2010 2040 600
DCQ8-0.5 8000 2000*2000 400 400 300 0.75 2010 2040 600
DCQ10-0.5 10000 2000*2000 400 400 300 0.75 2010 2040 600
DCQ12-0.5 12000 2000*2000 400 400 300 1.1 2010 2040 600
DCQ15-0.5 15000 2000*2000 400 400 300 1.1 2010 2040 600



Noted: Usually the electric dock levelers width is 1800mm / 2000mm, Normal length is 2000mm/2500mm/3000mm. Also can make it as your requirements.



Main Features:

  • 1. One piece 16mm thickness diamond lip which lifting by dia 50mm oil cylinder.
  • 2. 8 pieces " L" or " U" support under the platform make the deck strong.
  • 3. Skid-proof checkered steel sheet on the top face of platform.
  • 4. 400mm width lip in hinges type or sleeve type for option.
  • 5. Heavy duty high pressure cylinders with Japanese Brand sealing.
  • 6. KS Brand (Made In China) hydraulic power unit with good seal capacity and long life
  • 7. 250mm×250×100mm rubber bumpes to protect it-self when truck reverse to dock platform.
  • 8. Full range toe guard plate at both side to protect user.



Configurations:

  • 1.Electric system: Simple controller with up/down button which is made in CHINT electrical components ( Made In China)
  • 2.Hydraulic System: KS brand power pack ,other brands (Made In China) or imported power pack as customer requirments.
  • 3.Platform Surface : Antiskid checkered plate sheet .Thickness 6mm/8mm/10mm
  • 4.Main Support: 10# I beam or other kinds of type steel support under the platform.
  • 5.Lip thickness: 16mm checkered plate
  • 6.Top face steel sheet on the deck:6mm/8mm/10mm optional
  • 7.High-pressure oil hose: Rubber hose with double wire steel mesh. It is can bear oil pressure Max.48MPA.
  • 8.Surface treatment: Power coating or Spray paint.



Optional Configuration:

  • Hydraulic Power Pack: 0.75KW /1.1KW China power pack or imported power pack as your requirements
  • Electric controller with emergency or without emergency button.
  • Lip connecting in sleeve type or hinged type for option.



Applications:



  • 1. Site: Suitable for loading and unloading logistic centre,  warehouse, forwarding station, wharf, warehouse, postal dock of transportation
  • 2. Electr hydaulic dock levelers Application: Loading/unloading goods from containers or trucks etc.





Right height dock levelers​​ safety precaution:

  • 1. Emergency stop button
  • 2. 2 pieces toe guard plates at the loading dock equipment both side to protect feet of the worker.
  • 3. Maintaince rod break though the lip, fully protect the safety of serviceman.
  • 4. 250×250×100mm Bumper cushion to protect the dock leveler it-self when truck reverse to platform.
  • 5. High pressure rubber oil hose with double steel mesh in it.
  • 6. 24V low voltage to operate the loading dock equipment

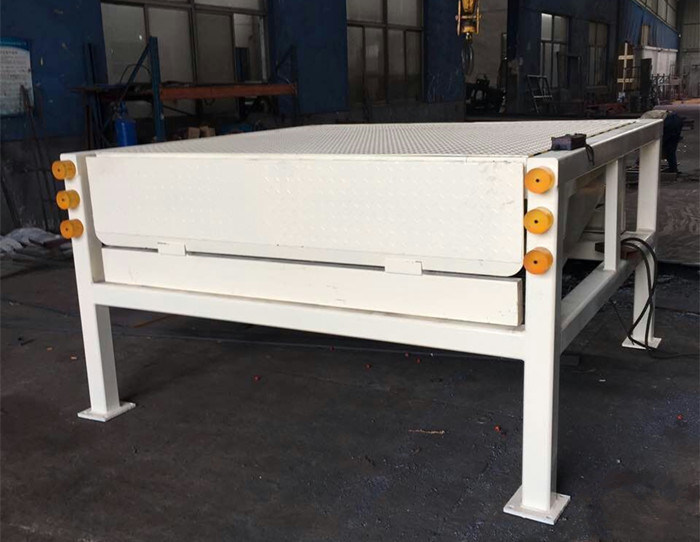

Electric dock levelers pictures:



Custom-made Free-Standing Frame 10T Hydraulic Electric Dock Leveler For Warehouse 0
