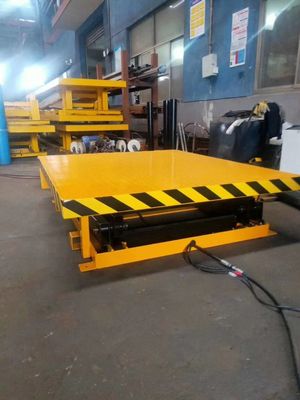

Hydraulic Scissor Lift 3500KG Loading Dock Lift With Manual Or Electric Lip

Hydraulic Scissor Lift 3500KG Loading Dock Lift With Manual Or Electric Lip

Description:

• Hydraulic scissor lift are used for lifting and lowering goods at required heights in safe conditions for the operator.In many cases, they represent the best solution for the manual load handling, in full observance of the safety standards with regards to functioning, cost-saving, safety and health of operators during work.In order to more suitable for your warehouse, scissor loading dock lift ,We supply customization service as your site requirements
• Saftey device: Explosion Proof Valve, Emergency safety valves and with full toe guard for optional.
• A loading dock lift is usually the smallest of the lift platform you’ll find at any given job site, it is also the most versatile one.
• Hydraulic scissor lift can be totally customized according to different load capacity, platform size, and lifting height.It is used to lifting goods between the ground floor and other floors. Also It is widely used in factory, warehouse, logistic center, airport and so on.



Noted: Usually hydraulic scissor lift width is 2000mm, if over 2000mm width, it will need to spliced platform. And also can be custom as your requirements!


Main Features:

• 1. Reinforced skidproof diamond surface material, which can prevent people and goods slipping down, more safety
• 2. Heavy duty & high strong manganese steel structure
• 3. Skidproof high-strength chequered platform, and lip for optional, need or not.
• 4. Full width one -piece or two lip for option
• 5. Heavy duty high pressure cylinders
• 6. First class hydraulic power unit, good seal capacity and long life
• 7. Safety protected 1, with Explosion Proof Valve
• 8. Safety protected 2 for optional, with full toe guard to protect users if need
• 9. Safety protected 3, with emergency safety valves
• 10. Lift type, electric hydraulic scissor


Parameters:

• 1. Electric system: Schneider contactor, CHINT electrical components ( Made In China)
• 2. Hydraulic System: Hycman brand power pack(Made In China) , Oiltec (Import brand) or as requirements
• 3. Scissor Arm Support: Hi-strength Manganese steel rectangle tube Q345 B
• 4. Platform Surface : Antiskid checkered plate steel
• 5. Main Support: 10# I beam
• 6. Deck lip platform steel thickness:6mm/8mm/10mm checkered plate(If need lip)
• 7. High-pressure Oil Pipe: Double wire-steel mesh in hydraulic rubber hose


Hydraulic scissor lift precautions:

• 1. Manual decline valve
• 2. Explosion proof  valves between oil cylinder and oil tube.
• 3. Number of floor layers indicator
• 4. Door inter-locking device if indeed need.
• 5. Over height protect
• 6. Running indicator
• 7. Over load alarm system if need


Optional Configuration:

• Hydraulic Power Pack: China power pack or imported power pack as your requirements


Applications:

1. Site: Work Shop, logistic center, warehouse loading bay system, etc.
2. Small scissor lifts application: Lifting and Loading/unloading Cargo as dock leveler function, etc.



Custom hydraulic scissor lift from client feedback:
