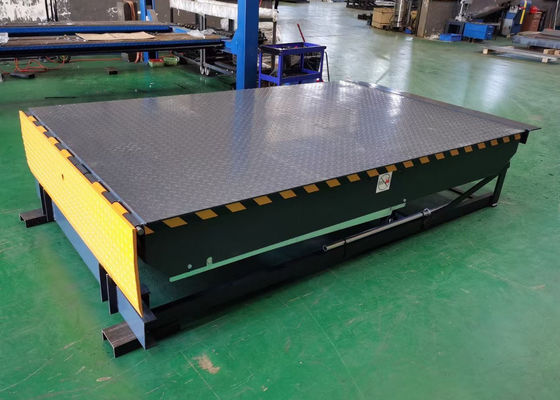

1.1KW 8T Electric Dock Leveler For Warehousing Site

Forklift Ramp Smooth Transition 8T Electric Dock Leveler Install At Warehousing Site

Forklift Ramp dock leveler description:

King-Lift is your manufacturer of loading dock equipment. King-Lift’s large range of loading dock product offerings satisfy a wide variety of applications including a complete line of dock levelers, vehicle restraints, dock seals and shelters and aftermarket accessories for the loading dock whether it is in the logistics, manufacturing or materials handling industry. Safety and innovation are important features. King-Lift engineers loading dock equipment for safety and longevity and offers expert consultation each step of the way

• 1. Electric dock leveller is connected for truck & warehouse loading bay, which is a ramp for forklift to load/unloading equipment.
• 2. Electric dock leveler is operated by hydraulic electric.
• 3. Power supply can be custom for you, like 380V 50HZ, 400V, 415V,ETC.
• 4. Widely used for warehouse, container, truck, factory,etc.
• 5. Particular special site need hop dip galvanized dock leveler

Noted: Usually the hot dip galvanized dock leveler width is 1800mm / 2000mm, Normal length is 2000mm/2500mm/3000mm. Also can make it as your requirements.

Main Features:

• 1. One piece 16mm thickness diamond lip which lifting by dia 50mm oil cylinder.
• 2. 8 pieces " L" or " U" support under the platform make the deck strong.
• 3. Skid-proof checkered steel sheet on the top face of platform.
• 4. 400mm width lip in hinges type or sleeve type for option.
• 5. Heavy duty high pressure cylinders with "NOK" sealing.
• 6. KS Brand (Made In China) hydraulic power unit with good seal capacity and long life
• 7. 250mm×250×100mm rubber bumpes to protect it-self when truck reverse to dock platform.
• 8. Full range toe guard plate at both side to protect user.

Configurations:

• Electric system: Simple controller with up/down button which is made in CHINT electrical components ( Made In China)
• Hydraulic System: KS brand power pack ,other brands (Made In China) or imported power pack as customer requirments.
• Platform Surface : Antiskid checkered plate sheet .Thickness 6mm/8mm/10mm
• Main Support: 10# I beam or other kinds of type steel support under the platform.
• Lip thickness: 16mm checkered plate
• Top face steel sheet on the deck:6mm/8mm/10mm optional
• High-pressure oil hose: Rubber hose with double wire steel mesh. It is can bear oil pressure Max.48MPA.
• Surface treatment: Power coating or Spray paint.

Optional Configuration:

• Hydraulic Power Pack: 0.75KW /1.1KW China power pack or imported power pack as your requirements
• Electric controller with emergency or without emergency button.
• Lip connecting in sleeve type or hinge type for option.

Applications:

1. Site: Suitable for loading and unloading logistic centre,  warehouse, forwarding station, wharf, warehouse, postal dock of transportation

2. Warehouse hydraulic dock levelers application: Loading/unloading goods from containers or trucks etc.

Forklift Ramp Dock Leveler Pictures:

Forklift Ramp Dock Leveler​ Safety Precaution:

1. Emergency stop button

2. 2 pieces toe guard plates at the loading dock equipment both side to protect feet of the worker.

3. Maintaince rod break though the lip, fully protect the safety of serviceman.

4. 250×250×100mm Bumper cushion to protect the dock leveler it-self when truck reverse to platform.

5. High pressure rubber oil hose with double steel mesh in it.

6. 24V low voltage to operate the loading dock equipment
