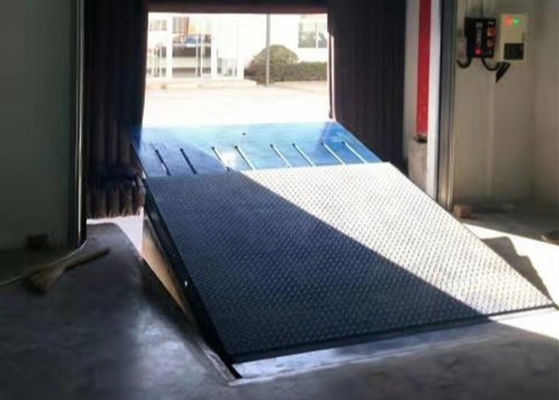

1000mm Telescopic Lip Hydraulic Dock Leveler，Loading Dock Equipment For Truck Loading/Unloading

1000mm Telescopic Lip Hydraulic Dock Leveler,Loading Dock Equipment For Truck Loading/Unloading

Telescopic Lip Dock Leveler Description:

• The Telescopic Lip Dock Leveler allow you to adapt to all loading and unloading situations. Thanks to the lip’s retractable movement, the truck does not have to be centred in the dock.With TDCQ6-1.0 dock models you have longer platforms (Telescopic lip 1000mm) with a place in shorter loading bays.They allow larger height differences between loading bays and truck platforms, as well as the distance between them.

Noted: Usually the Telescopic Lip Dock Leveler width is 2000mm, it also can be custom as your requirements!.The lip can extend telescopic reached 800mm/900/1000mm.

Main Features:

• 1. 20mm thickness anti-skid plate make the telescopic lip
• 2. 8-10 pieces "C" or "H" beam to support heavay duty deck.
• 3. Anti-skid high-strength chequered steel on the top face of the platform.
• 4. Full width one -piece lip be telescopic 1000mm by electric hydraulic system.
• 5. Heavy duty high pressure hydraulic cylinders
• 6. First class imported hydraulic power pack, good seal capacity and long life
• 7. Rubber bumpers to protect machine-self when the truck reverse to dock platform.
• 8. Full range toe guard to protect user when operater use it.

Configurations:

• Electric system: Schneider contactor, CHINT electrical components
• Hydraulic System: ARGO-HYTOS Swiss brand power pack
• Platform Surface : 6mm/8mm/10mm Antiskid checkered plate
• Main Support: 8-10pieces" C" or "H" beam under the deck to supporting.
• Deck lip platform thickness: 20mm milling flute plate
• High-pressure oil hose: Double steel mesh in the rubber hose.

Optional Configuration:

• Hydraulic Power Pack:ARGO-HYTOS Swiss brand.
• Electric controller with emergency or without emergency.

Applications:

1. Site: Work Shop, logistic center, big cold storge centre etc.

2. Telescopic lip dock levellers use: Loading/unloading Cargo etc.

Telescopic lip dock levellers sketch:

Telescopic lip dock levellers​ safety precaution:

1. Emergency button

2. Toe guards on both side to protect operation worker feet.

3. Maintaince rod break though the lip fully protect the safety of the serviceman.

4. Bumper block protect the dock leveler it-self when truck reverse to th.

5. Oil tube with steel mesh structure . Max oil pressure 48MPA.

6. Double cylinders support the lip telescopic that so stable and reliable.
