| Product Name: | Hydraulic Dock Ramp | Loading Capacity: | 6000KG/8000KG/10000KG |
|---|---|---|---|
| Working Range: | 1200-1800mm | Lip Length: | 300mm /400mm |
| Total Length: | 10500mm/11200mm Or Bespoke | Total Width: | 2000/2100mm |
| Operation: | Manual Hydraulic Or Electric Hydraulic For Optional | Color: | Grey,Blue, Green, Yellow Or Custom Color |
| High Light: | mobile loading dock ramps,movable dock ramp |
||
Hydraulic Dock Ramp Lift By Manual Or Electric Hydralic Power Which Is For Forklift Unloading
Description:
Movable Hydraulic Dock Ramp is special accessory equipment which can realize rapid loading and unloading of goods by forklift.Trucks can directly come into the carriage,lorry, or container to quickly load or unload goods, increasing working efficiency.
An Hydraulic Dock Ramp is the described as a bridge for connecting a vehicle. Frequently the important characteristics that this tool necessary are undervalued , However , It is der to grantee an efficient working environment assistant equipment.
| Model No. | Loading capacity(kg) |
A(M) Slope length |
B(M) Platform length |
D(M) Guide plate length |
C(M) Lip length |
E(M) Total length |
F(M) Inner width |
G(M) Total width |
H(M) Min. height |
I(M) Adjustable height |
J(M) Max. height |
| DCQY6-0.5 | 6000 | 7.0 | 2.2 | 1.0 | 0.3 | 10.5 | 2 | 2.1 | 1.2 | 0.5 | 1.7 |
| DCQY8-0.5 | 8000 | 7.0 | 2.2 | 1.0 | 0.3 | 10.5 | 2 | 2.1 | 1.2 | 0.5 | 1.7 |
| DCQY10-0.5 | 10000 | 7.5 | 2.4 | 1.0 | 0.3 | 11.2 | 2 | 2.1 | 1.2 | 0.5 | 1.7 |
| DCQY15-0.5 | 15000 | 8 | 4 | 1.0 | 0.3 | 13.3 | 2.3 | 2.46 | 1.2 | 0.5 | 1.7 |
| DCQY20-0.5 | 20000 | 8 | 4 | 1.0 | 0.3 | 13.3 | 2.3 | 2.5 | 1.2 | 0.5 | 1.7 |
Hydraulic dock ramp size can be customizable
Main Features:
Optional Configuration:
Applications:
1. Site: Work Shop, logistic center, warehouse, factory, explosion proof &inflammable places, etc.
2. Hydraulic dock ramp use: Loading/unloading Cargo etc.
Hydraulic Dock Ramp Safety Precaution:
1. Chain of the loading dock ramp lock with lorry tail. let the dock ramp platform tight with the truck tail.
2. Wheel chock let the mobile loading ramp can not movement when it loading and unloading goods from truck.
3. Support leg let the yard loading ramps more stable when loading and unloading goods from lorries.

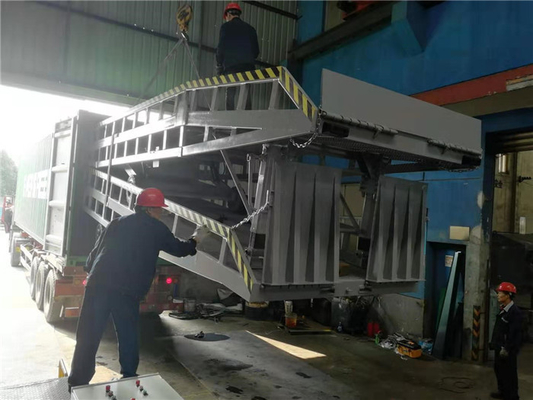

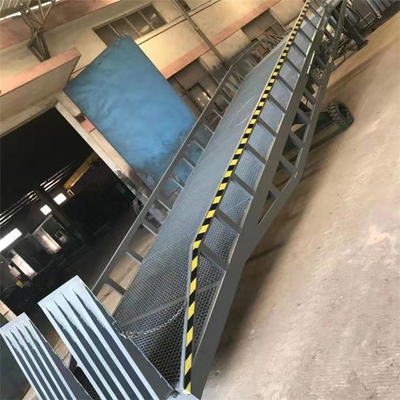

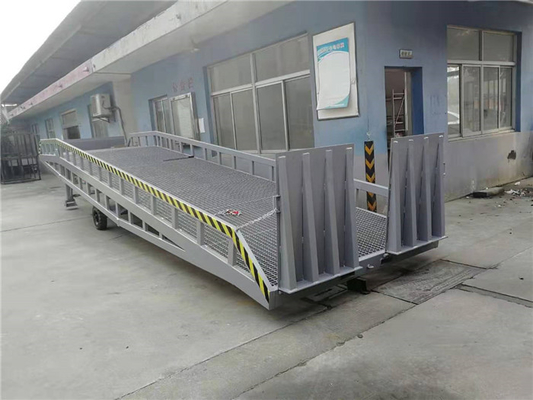

Hydraulic dock ramp pictures:
