Hydraulic Scissor Lift Table ​​​Description:

• Scissor lift table cover a very broad range of lifting equipment, which are all distinguished by using folded supports arranged in a pattern similar to a scissor formation to elevate a platform to position either people or equipment in the right height and place. Scissor lifts can be used for a very wide range of applications across a multitude of industries. A substantial amount of these are used as aerial work platforms in the construction industry or for service and maintenance work.



Noted: Usually hydraulic scissor lift table width is 2000mm, if over 2000mm width, it will need to spliced platform. And also can be custom as your requirements!


Main Features:

• 1. Different thickness anti-skid checkered surface material design as different load capacity, which can prevent people or goods slipping down, more safety.
• 2. High strength manganese material construction make the scissor lift platform can load heavy weigh on it
• 3.16mm thickness lip make in one pieces or two pieces whatever all as conveniently use
• 4. Nok high quality oil sealing in the oil cylinder make it long life
• 5. First class quality hydraulic power unit Made In China Or Imported Brand for option
• 6. Safety protected 1, with Anti-Explosion Valve
• 7. Safety protected 2, safety toe guard to protect users if need
• 8. Reserved lifting eye (hole) to make install lift table easier.
• 9. Copper sleeves in pivot points of the scissor arm.
• 10.High quality hydraulic power packs are made in China or imported.


Parameters:

• Electric system: Hydraulic lifting actuation, Schneider or CHINT electrical components ( Made In China) or Other Brands but same level.
• Hydraulic System: Hycman,KS brand power pack or power unit (Made In China) , Oiltec (Import brand) or other brands but same level.
• Scissor Arm Support: Hi-strength Manganese steel or rectangle tube Q345 B
• Platform Surface : Antiskid checkered plate steel
• Main Support: 10# I beam, "U", rectangular tube different choose that as different load capacity to be design.
• Deck lip platform steel thickness:6mm/8mm/10mm checkered plate or flat steel which as customer require.
• High-pressure Oil hose: Double wire-steel mesh in hydraulic rubber hose to ensure bear high pressure.

Hydraulic Scissor Lift Platform Precautions:
1. Emergency valves make stop quickly.
2. Anti- Explosion safety valves between oil cylinder and oil tube make hydraulic scissor lift stop when oil hose burst
3. Number of floor layers indicator
4. Door inter-locking device if indeed need
5. Buzzor for over height or over load , it same as alarm protection
6. Running indicator
7. Aluminum safety bar under the platform to preventing when scissor lift come down on feet of worker or other obstructions.

Optional Configuration:

• Hydraulic Power Pack: China power pack or imported power pack as customer requirements.
• Lifting Meters from 0.5m to 12m to be option or customization
• Load capacity from 300kg to 15ton or as custom-made
• Safety prevention measures as custom-made.

Hydraulic scissor lift table applications:

1. Site: Work Shop, logistic center, Warehouse , storage premises,etc.
2. Stainless steel platform lift application: Lifting and Loading/unloading Cargo as dock leveler function, etc.

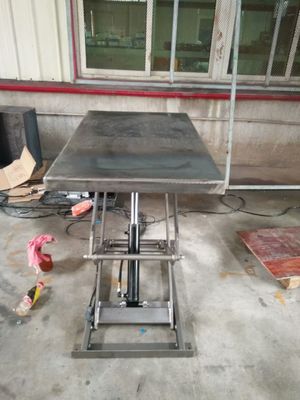

Hydraulic scissor lift table pictures:
