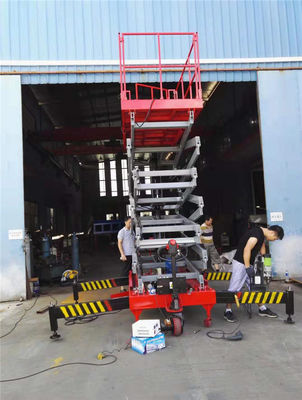

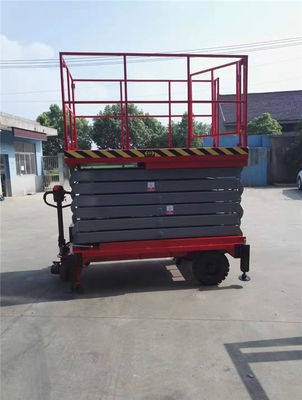

300KG 14M With Emergency Manual Lowing Valves Hydraulic Mobile Motorized Scissor Lift

300KG 14M With Emergency Manual Lowing Valves Hydraulic Mobile Motorized Scissor Lift

Description:

• 1. Motorized scissor lift is a professional safety mobile and portable scissor lift for aerial working platform, which is custom with motorized wheel walk,It can be moved by electric walking, very portable and simple.

• 2. By manual or motorized whell walking.When it is heavy duty and high lifting, the weight of scissor lift is heavy, you can chose motorized wheel walk or by forklift moved. If by forklift moved, need let usknow, will custom it for forklift moved.

• 3. Working platform material is anti-skid diamond platform.

• 4. Lifting height is from 3m-16m, or as your custom.

• 5. Power voltage, usually it is AC380V 50HZ, also can be custom DC24V battery or AC415V and others.

• 6. This lifting work platform make light load capacity(300kg-500kg) ,It is wide rang application in the workshop,warehouse, enterprise, hotel.It is suitable for 1-2 persons working on the platfrom at the same time.

• 7. Scissor mechanical structure by electric hydraulic.

• 8. Safety device, there is a over height protected and explosion proof valves.

Noted: Mobile scissor lift also can be custom as your requirements!

Main Features:

• 1. Reinforced chassis design and scissor arm to reduce the platform swing when working.
• 2. Anti-explosion valve between the cylinder and oil tube to prevent the mobile scissor lift drop down at moment when it lifting working but in problems.
• 3. One controller on the lift table platform is easy to help worker operate the scissor lift lifting up and come down.
• 4. Full handrail around the platform to protect the worker safety when they work on the platform.
• 5. Emergency lowering valve help to solve if the machine have problems when it work on the lifting height .
• 6. Nomal Power is 380V 50HZ AC, but option extra DC battery can sovle the aerial work platform outside if no enough power cable  or not conveniently to connect AC power.
• 7. Mobile scissor lift, there are two option for mobil, one is by manual, another is by electric mobile.

Configurations:

• 1.Electric system: Schneider contactor, CHINT electrical components
• 2.Hydraulic System: Hycman brand power pack ,KS brand (Made In China) or imported brand as requirements
• 3.Scissor Arm Support: Hi-strength Manganese steel or rectangle tube Q345 B
• 4.Platform Surface : Antiskid checkered plate steel sheet.
• 5.Fence at three sides of the top platform but reserve one door for worker in and out. This door can design inter-locking to protect user safety.
• 6.High-pressure oil hose: steel wire mesh between in double hydraulic rubber hose , ensure the oil hose have safety anti-pressure ability.

Optional Configuration:

• 1.Hydraulic Power Pack: China power pack or imported power pack as your requirements
• 2.Interlocking device to protect worker safety on the platform.
• 3.Power: AC 380V 50HZ. AC 415V 50HZ. or extra DC battery to optional as yours

Applications:

• 1. Site: Work Shop, logistic center, warehouse aerial working, etc.
• 2. Mobile scissor table application : for aerial working, like hotel aerial cleaning, maintenance power line, etc.

Mobile scissor lift​​ Safety precautions:

• 1. Manual emergency safety valves
• 2. Anti- Explosion safety valves between oil cylinder and oil tube.
• 3. Over height protection device
• 4. Over load alarm or over load buzzer.
• 5. Lowering valve

Mobile scissor lift sketch:
