Product Details:
Payment & Shipping Terms:
|
| Product Name: | Anti-skid Diamond Platform Double Mast Aluminum Alloy 12M Aerial Truck Mounted Lift Table | Keyword: | Truck Mounted Lift Table |
|---|---|---|---|
| Application: | Aerial Outdoor Maitence | Capacity: | 12M Height 200KG |
| Safery Device: | Lowering Safety System | Motor Power: | 1.1kw/2.0kw/3.2k/,4.0kw,etc |
| Power Voltage: | AC220V 50HZ/ DC Battery Or As Yours | Material: | Anti-skid Diamond Platform Double Mast Aluminum Alloy |
| Lifting Type: | Electric Hydraulic | Walking Type: | Automobile Driving |
| High Light: | mobile aerial work platform,telescopic platform lift |
||
Aluminum aerial working platform operate instruction:

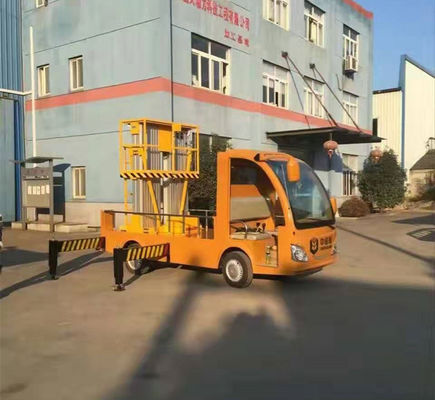

Anti-skid Diamond Platform Double Mast Aluminum Alloy 12M Aerial Truck Mounted Lift Table
Description:
1. Truck mounted lift platfform is a pickup truck mounted aerial working equipment made by alloy aluminum for indoor/outdoor, It is easy to operate and can be customized as per the requirements from the the customers.
2. Truck mounted aerial working platform is moved by automobile, very easy for outdoor aerial working.
3.These aerial working equipments are used to maintenance servic industry which is conviently,quickly, portable and easily. They are have single mast, double mast, triple mast, four mast, six mast working platform for optional.
4. When failure of electric supply, there is a lowering safety system to decline for user during aerial working.
5. Structure material are aluminum alloy, it is portable, and platform is anti-skid diamond plate.
| Name | Model No. | Max.H (m) | Max.working H (m) | Loading capacity (kg) |
Platform size (m) |
Voltage V/HZ |
Power (KW) |
Self-weight (kg) |
Overall size (m) |
| Single mast | GTWY410 | 4 | 5.7 | 125 | 0.61*0.63 | AC220/50HZ | 0.75 | 230 | 1.36*0.82*1.65 |
| GTWY610 | 6 | 7.7 | 125 | 0.61*0.63 | AC220/50HZ | 0.75 | 250 | 1.36*0.82*1.65 | |
| GTWY810 | 8 | 9.7 | 125 | 0.61*0.63 | AC220/50HZ | 0.75 | 280 | 1.46*0.82*2.0 | |
| GTWY910 | 9 | 10.7 | 125 | 0.61*0.63 | AC220/50HZ | 0.75 | 320 | 1.66*0.82*2.0 | |
| Double mast | GTWY620 | 6 | 7.7 | 200 | 1.17*0.54 | AC220/50HZ | 1.1 | 450 | 1.38*0.82*1.65 |
| GTWY820 | 8 | 9.7 | 200 | 1.27*0.54 | AC220/50HZ | 1.1 | 520 | 1.48*0.82*1.8 | |
| GTWY1020 | 10 | 11.7 | 200 | 1.37*0.54 | AC220/50HZ | 1.1 | 600 | 1.58*0.88*2.0 | |
| GTWY1220 | 12 | 13.7 | 200 | 1.47*0.54 | AC220/50HZ | 1.1 | 650 | 1.68*0.88*2.0 | |
| Triple mast | GTWY1325 | 13 | 14.7 | 250 | 1.48*0.85 | AC220/50HZ | 2.2 | 1000 | 1.9*1.15*2.45 |
| GTWY1425 | 14 | 15.7 | 250 | 1.56*0.85 | AC220/50HZ | 2.2 | 1100 | 2.2*1.15*2.45 | |
| Four mast | GTWY1420 | 14 | 15.7 | 200 | 1.56*0.85 | AC220/50HZ | 3 | 1200 | 2.2*1.15*2.45 |
| GTWY1520 | 15 | 16.7 | 200 | 1.56*0.85 | AC220/50HZ | 3 | 1400 | 2.2*1.15*2.7 | |
| GTWY1620 | 16 | 17.7 | 200 | 1.56*0.85 | AC220/50HZ | 3 | 1500 | 2.2*1.15*2.9 | |
| Six mast | GTWY1615 | 16 | 17.7 | 150 | 1.56*0.95 | AC220/50HZ | 2.2/1.1 | 1550 | 2.4*1.3*2.15 |
| GTWY1815 | 18 | 18.7 | 150 | 1.56*0.95 | AC220/50HZ | 2.2/1.1 | 1700 | 2.4*1.3*2.25 | |
| GTWY2015 | 20 | 21.5 | 150 | 1.56*0.95 | AC220/50HZ | 2.2/1.1 | 1850 | 2.4*1.3*2.45 |
Noted: It also can be custom as your requirements!
Main Features:
Configurations:
Optional Configuration:
Applications:
Truck mounted work platform safety precautions:
