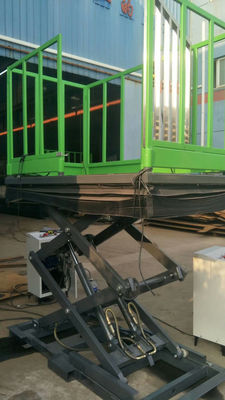

Hydraulic Scissor Platform Lift Table With Safety Accordion Cover For Utility Protection

Hydraulic Scissor Platform Lift Table With Safety Accordion Cover For Utility Protection

Hydraulic Scissor Lift Table Description:

• Hydraulic Scissor Lift Table is usually the smallest of the lift platform you’ll find at any given job site, it is also the most versatile one.Our hydraulic lift tables are the rational and economical solution to replace conventional elevators.Its safety accordion cover are designed to protect lift mechanisms and personnel from dust, dirt, foreign objects and pinch points. Lift covers are constructed of rugged, durable materials selected for specific applications based on the environment in which the lift table will operate.

Noted: Usually Hydraulic Scissor Lift Table width is 2000mm, if over 2000mm width, it will need to spliced platform. And also can be custom as your requirements!

Main Features:

• 1. Reinforced skidproof diamond platform, which can prevent people and goods slipping down, more safety
• 2. Heavy duty & high strong construction
• 3. Anti-skid high-strength chequered platform, and lip for optional, need or not.
• 4. Full width one -piece or two lip for option (hinges pin type or sleeve type)
• 5. Heavy duty high pressure cylinders
• 6. First class hydraulic power unit, good seal capacity and long life
• 7. Safety protected 1, with Explosion Proof Lock Valve
• 8. Safety protected 2 for optional, with Safety toe guard to protect users
• 9.  Extra requiremetns: safety bellow prevent the scissor lift from water, dust and people invading into the lift

Details:

• Electric system: Schneider contactor, CHINT electrical components ( Made In China)
• Hydraulic System: Hycman brand power pack(Made In China) , Oiltec (Import brand) or as requirements
• Scissor Arm Support: Hi-strength Manganese steel rectangle tube Q345 B
• Platform Surface : Antiskid checkered plate steel
• Main Support: 10# I beam
• Deck lip platform steel thickness:6mm/8mm/10mm checkered plate(If need lip)
• High-pressure Oil Pipe: Double wire-steel mesh in hydraulic rubber hose

Hydraulic Scissor Lift Table Precautions:

1. Emergency valves
2.  Anti- Explosion safety valves between oil cylinder and oil tube.
3.  Number of floor layers indicator
4.  Door inter-locking device if indeed need.
5.  Over height protect
6.  Running indicator
7.  Over load alarm

Optional Configuration:

• Hydraulic Power Pack: China power pack or imported power pack as your requirements

Applications:

1. Site: Work Shop, logistic center, warehouse loading bay, etc.
2.  Hydraulic Scissor Lift Table Application: Lifting and Loading/unloading Cargo, lifting cargos as elevator, etc.

Hydraulic Scissor Lift Table Sketch:
