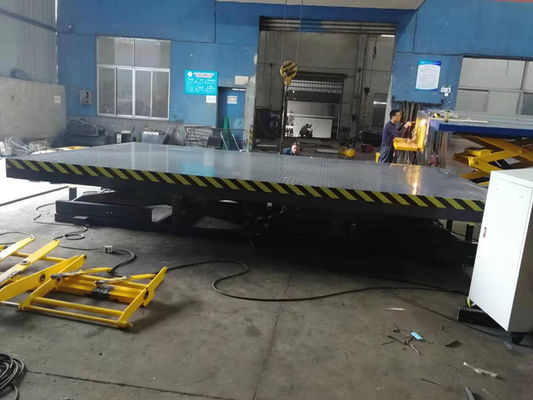

Tandem Hydraulic Lift Table, Twin Scissor Lift Table For Heavy Loading And Unloading

Tandem Hydraulic Lift Table, Twin Scissor Lift Table For Heavy Loading And Unloading
Tandem Hydraulic Lift Table, Twin Scissor Lift Table For Heavy Loading And Unloading Tandem Hydraulic Lift Table, Twin Scissor Lift Table For Heavy Loading And Unloading

Large Image :  Tandem Hydraulic Lift Table, Twin Scissor Lift Table For Heavy Loading And Unloading

Product Details:
Place of Origin: China
Brand Name: Kinglift
Certification: CE
Model Number: KLSJG2.0-2.8
Payment & Shipping Terms:
Minimum Order Quantity: 1unit
Price: Negotiable
Packaging Details: Wrapped in bubble wrap
Delivery Time: 10-15days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 120sets/month
Detailed Product Description
Product Name: Tandem Hydraulic Lift Table Keywords: Twin Scissor Lift Table
Platform Size: 2000*6000mm Large Work Platform Size Loading Capacity: 2T, 4T,6T, Or More Heavy Duty Capacity
Lifting Height: 2.8M Safety Device: Toe Guards
High Light:

small electric scissor lift table

,

stainless steel hydraulic lift table

Tandem Hydraulic Lift Table, Twin Scissor Lift Table For Heavy Loading And Unloading



Description:

  • The Tandem Scissor Lift configuration is ideal for handling long and heavy loads. Capable of capacities ranging from 100,000 pounds, this particular scissor lift is a class that is set apart from all others. The King-Lift Tandem Scissor Lift Series has a powerful heavy-duty construction to handle the heaviest industrial applications. Strong and durable the tandem Scissor lift begins with solid steel one-piece arm assemblies ranging from 3/4 inch to 1-1/2 inch thick, depending on travel and capacity. The back-to-back set of scissor arms gives this particular scissor lift the stability to handle several type of loads. These objects may include heavy equipment, automotive assemblies, wood, furniture and other, longer loads.



Model Capacity(KG) Min.height Max.height Platform size
L*W(mm)
Lifting time
(s)
Motor
(kw)
Self-weight (kg)
KLSJG1-5 1000 780 5000 4500*2000 62(±5s) 4.0 2400
KLSJG3-1.6 3000 450 1800 4800*2000 32(±5s) 4.0 1650
KLSJG3-2.5 3000 550 3050 5000*1500 50(±5s) 3.0 1600
KLSJG4-3 4000 720 3000 5200*1500 30(±5s) 4.0 1700
KLSJG4-5 5000 1000 5000 5500*2500 65(±5s) 7.5 4500
KLSJG7-1.6 7000 980 1600 5800*2000 25(±5s) 5.5 2480
KLSJG2-6.5 2000 1190 6500 6000*2000 75(±5s) 5.5 2100





Noted: Usually Tandem Hydraulic Lift Table width is 2000mm, if over 2000mm width, it will need to spliced platform. And also can be custom as your requirements!





Main Features:

  • 1. Reinforced anti-skid checkered plate, which can prevent people and goods slipping down, more safety
  • 2. Heavy duty & high strength manganese steel scissor arms
  • 3. Anti-skid high strength anti-skid checkered plate lip for optional, need or not.
  • 4. Full width one piece or two lips for option if need
  • 5. Heavy duty high pressure cylinders
  • 6. First class hydraulic power unit, good seal capacity and long life
  • 7. Safety protected 1, with anti-explosion valve
  • 8. Safety protected 2 with manual decline valve
  • 9.Safety protected 3 for optional, with Safety toe guard four sides to protect users if need
  • 10. For hight building warehouse cargo lifting platform



Parameters:

  • Electric system: Schneider contactor, CHINT electrical components ( Made In China)
  • Hydraulic System: Hycman brand power pack(Made In China) , Oiltec (Import brand) or as requirements
  • Scissor Arm Support: Hi-strength Manganese steel rectangle tube Q345 B
  • Platform Surface : Anti skid diamond surface plate steel
  • Main Support: 10# I beam according the loading capacity and lifting height
  • Deck lip platform steel thickness:6mm/8mm/10mm diamond plate(If need lip)
  • High-pressure Oil Pipe: Double wire-steel mesh in hydraulic rubber hose

Tandem Hydraulic Lift Table Precautions:

1. Emergency valves

2. Anti- Explosion safety valves between oil cylinder and oil tube

3. Number of floor layers indicator

4. Door inter-locking device if indeed need

5. Over height protect

6. Running indicator

7. Over load alarm if need

8. Manual decline valve to make users safety

9.safety bellow if need



Optional Configuration:

  • Hydraulic Power Pack: China power pack or imported power pack as your requirements



Applications:

1. Site: Work Shop, logistic center, warehouse, factory,etc.

2.Tandem Hydraulic Lift Table Application: cargo lifting as elevator, etc.



Tandem Hydraulic Lift Table sketch:

Tandem Hydraulic Lift Table, Twin Scissor Lift Table For Heavy Loading And Unloading 0

Tandem Hydraulic Lift Table, Twin Scissor Lift Table For Heavy Loading And Unloading 1
